7.2.4.1 MibADC Nonlinearity Errors

The differential nonlinearity error shown in Figure 7-2 (sometimes referred to as differential linearity) is the difference between an actual step width and the ideal value of 1 LSB.

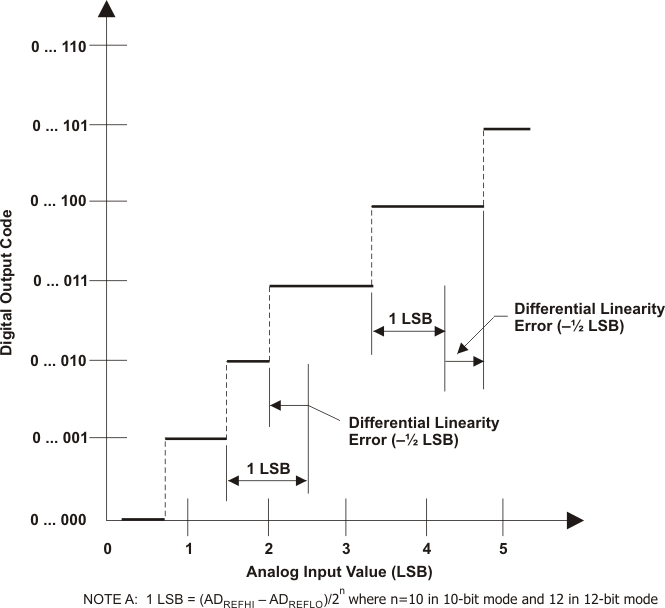

TMS570LS0432 TMS570LS0332 dnl_error_12bit_spns187.gifFigure 7-2 Differential Nonlinearity (DNL) Error

The integral nonlinearity error shown in Figure 7-3 (sometimes referred to as linearity error) is the deviation of the values on the actual transfer function from a straight line.

TMS570LS0432 TMS570LS0332 inl_error_12bit_spns186.gifFigure 7-3 Integral Nonlinearity (INL) Error
