9.5.5.2 Mode 2 - PCM input playback + PCM IVsense output

Mode 2 is similar to Mode 1 except the I/V sense ADCs are powered up and the data is routed back on the L/R return channels of the ASI port. This mode can be used to return the I/V data to the host to perform computations on the speaker I/V measurements such as speaker protection.

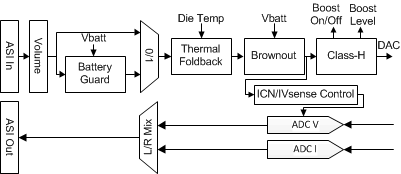

TAS2560 Rom_Mode2.gifFigure 52. Mode 2 Processing Block Diagram

A MCLK is needed in this mode if the BCLK is less than 1MHz. If BCLK and WCLK are configured for output then MCLK is also required for proper internal clocking.

Table 55. Pin Use Matrix Mode 2

BCLK WCLK DIN DOUT MCLK PDMCLK IRQ
BCLK WCLK DIN DOUT MCLK NA IRQ
