Table 5-29 EPI SDRAM Interface Characteristics

over operating free-air temperature (unless otherwise noted) (1) (see Figure 5-16, Figure 5-17, and Figure 5-18)
NO.PARAMETERMINTYPMAXUNIT
E1 tCK SDRAM clock period 16.67 ns
E2 tCH SDRAM clock high time 8.33 ns
E3 tCL SDRAM clock low time 8.33 ns
E4 tCOV CLK to output valid 4 ns
E5 tCOI CLK to output invalid 4 ns
E6 tCOT CLK to output tristate 4 ns
E7 tS Input set up to CLK 8.5 ns
E8 tH CLK to input hold 0 ns
E9 tPU Power-up time 100 µs
E10 tRP Precharge all banks 20 ns
E11 tRFC Auto refresh 66 ns
E12 tMRD Program mode register 2 EPI CLK
(1) The EPI SDRAM interface must use 12-mA drive.

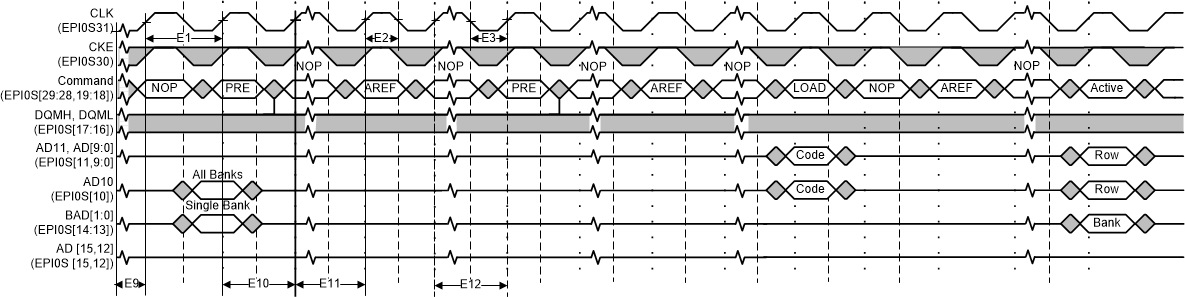

MSP432E411Y epi_sdram_init_lode_mode_reg.gif
1. If CS is high at clock high time, all applied commands are NOP.
2. The Mode register can be loaded before the autorefresh cycles.
3. JEDEC and PC100 specify 3 clock cycles.
4. Outputs are Hi-Z after the command is issued.
Figure 5-16 SDRAM Initialization and Load Mode Register Timing
MSP432E411Y epi_sdram_burst_readT.gifFigure 5-17 SDRAM Read Timing

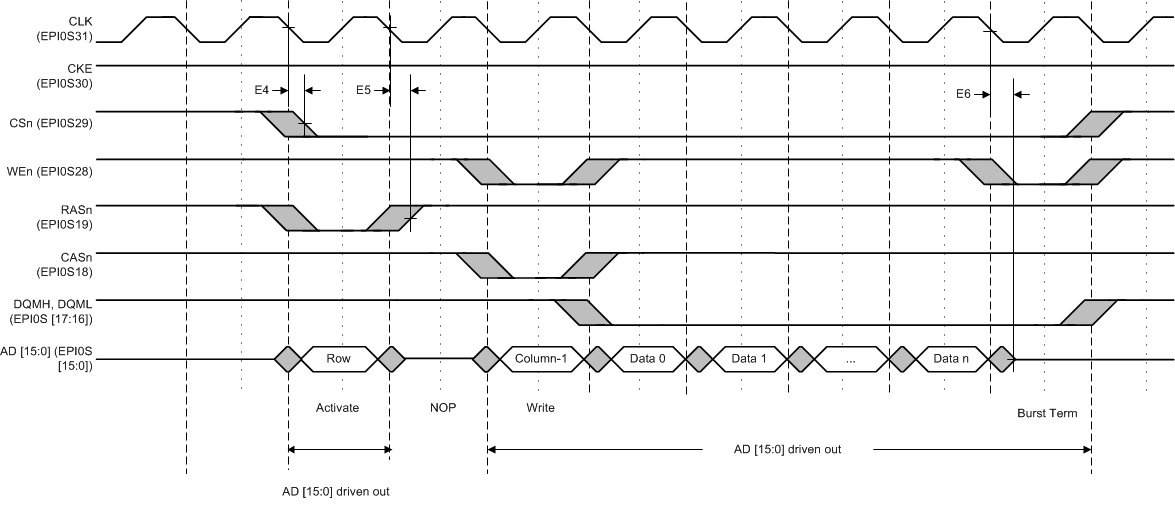

MSP432E411Y epi_sdram_burst_writeT.gifFigure 5-18 SDRAM Write Timing

Table 5-30 lists the characteristics of the Host-Bus 8 and Host-Bus 16 interface.
