9.14.22 Port P6 (P6.5 and P6.7) Input/Output With Schmitt Trigger

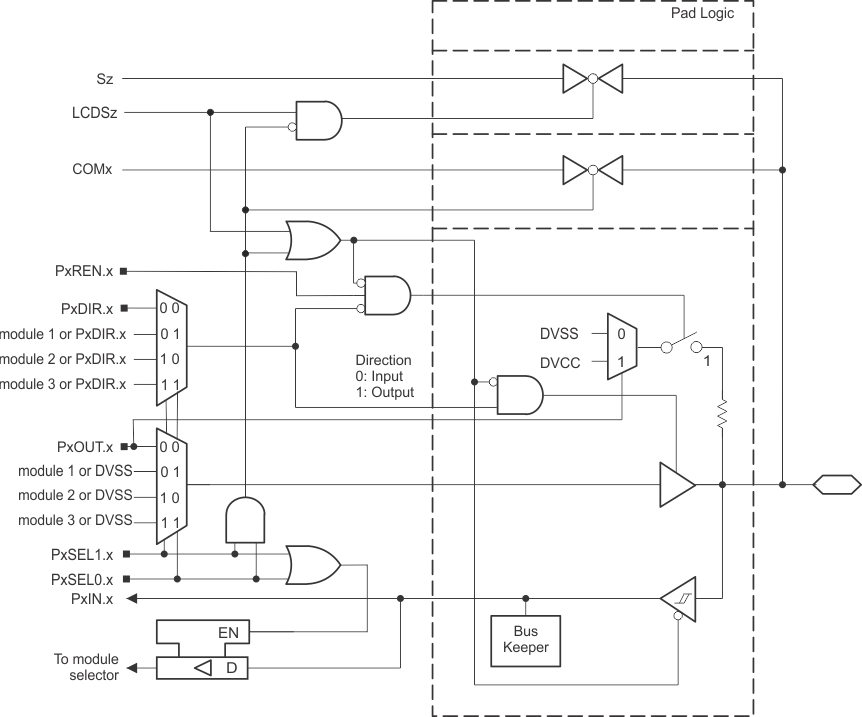

Figure 9-23 shows the port diagram. Table 9-45 summarizes the selection of the pin function.

Functional representation only.
Figure 9-23 Port P6 (P6.5 and P6.7) Diagram
Table 9-45 Port P6 (P6.5 to P6.7) Pin Functions
PIN NAME (P6.x) PN 80 PM RGC 64 FUNCTION CONTROL BITS OR SIGNALS (1)
P6DIR.x P6SEL1.x P6SEL0.x LCDSz
P6.5/SMCLK/COM1/ LCDS34 53 44 P6.5(I/O) 0 = Input, 1 = Output 0 0 0
N/A 0 0 1 0
SMCLK 1
N/A 0 1 0 0
Internally tied to DVSS 1
COM1(2) X 1 1 X
Sz (3) X X 0 1
0 X
P6.6/ACLK/COM2/ LCDS31 54 45 P6.6(I/O) 0 = Input, 1 = Output 0 0 0
N/A 0 0 1 0
ACLK 1
N/A 0 1 0 0
Internally tied to DVSS 1
COM2(2) X 1 1 X
Sz (3) X X 0 1
0 X
P6.7/TA0.1/COM4/ LCDS29 62 -- P6.7(I/O) 0 = Input, 1 = Output 0 0 0
TA0.CCI1A 0 0 1 0
TA0.1 1
N/A 0 1 0 0
Internally tied to DVSS 1
COM4(2) X 1 1 X
Sz (3) X X 0 1
0 X
(1) X = Don't care
(2) Setting P6SEL1.x and P6SEL0.x disables the output driver and the input Schmitt trigger to prevent parasitic cross currents when applying analog signals.
(3) Associated LCD segment is package dependent. Refer to the pin diagrams and signal descriptions in Section 7.
