8.10 Typical Characteristics, Low-Power Mode Supply Currents

Figure 8-2, Figure 8-3, Figure 8-4, and Figure 8-5 show the supply current vs temperature typical characterstics for selected low-power modes.

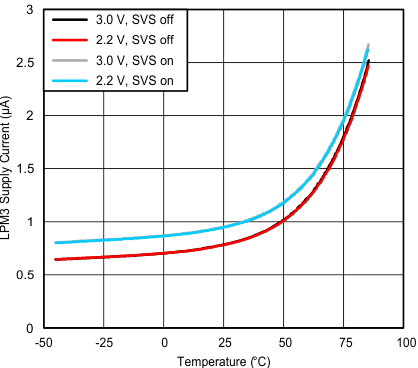

GUID-643028B3-89B6-4C39-8E24-705B5524271F-low.gifFigure 8-2 LPM3 Supply Current vs Temperature (LPM3,XT3.7)
GUID-45F05914-E2F3-4BAE-A50D-FB153DE57404-low.gifFigure 8-4 LPM3.5 Supply Current vs Temperature (LPM3.5,XT3.7)

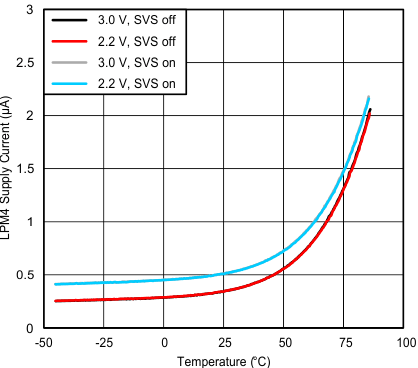

GUID-BB020C9C-8B51-4D47-A143-A6A2768FF5F4-low.gifFigure 8-3 LPM4 Supply Current vs Temperature (LPM4,SVS)
GUID-4FCEF3CD-489C-4A06-B770-18C9EE792C2C-low.gifFigure 8-5 LPM4.5 Supply Current vs Temperature (LPM4.5)
