9.14.21 Port P6 (P6.4) Input/Output With Schmitt Trigger

Figure 9-22 shows the port diagram. Table 9-44 summarizes the selection of the pin function.

Functional representation only.

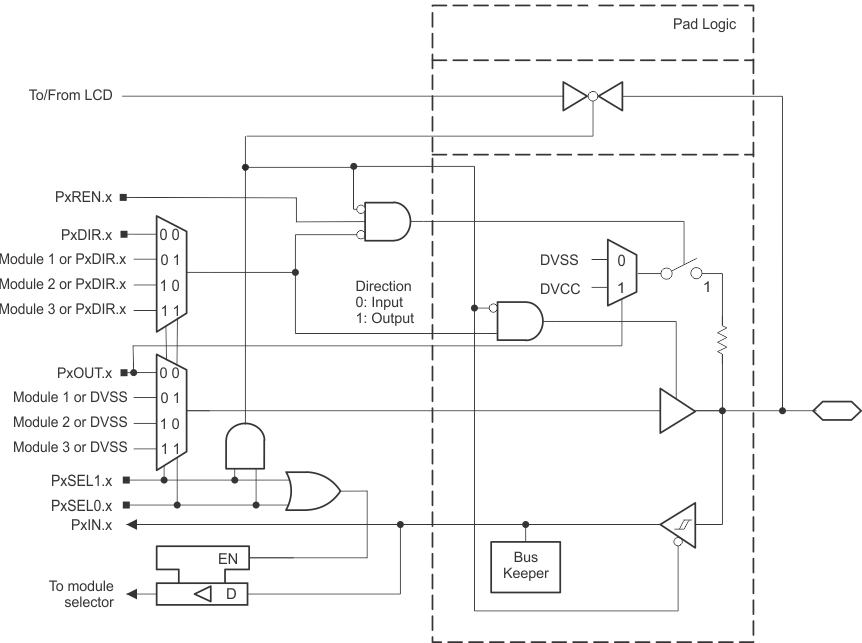

Figure 9-22 Port P6 (P6.4) Diagram
Table 9-44 Port P6 (P6.4) Pin Functions
PIN NAME (P6.x) PN 80 PM RGC 64 FUNCTION CONTROL BITS OR SIGNALS (1)
P6DIR.x P6SEL1.x P6SEL0.x
P6.4/MCLK/COM0 52 43 P6.4 (I/O) 0 = Input, 1 = Output 0 0
N/A 0 0 1
MCLK 1
N/A 0 1 0
Internally tied to DVSS 1
COM0 (2) X 1 1
(1) X = Don't care
(2) Setting P6SEL1.x = P6SEL0.x = 1 disables the output driver and the input Schmitt trigger to prevent parasitic cross currents when applying analog signals.
