Table 4-17 eUSCI (SPI Master Mode) Switching Characteristics

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)
PARAMETER TEST CONDITIONS DEVICE GRADE VCC MIN TYP MAX UNIT
tSTE,LEAD STE lead time, STE active to clock UCSTEM = 1,
UCMODEx = 01 or 10		 T 1 UCxCLK cycles
tSTE,LAG STE lag time, Last clock to STE inactive UCSTEM = 1,
UCMODEx = 01 or 10		 T 1 UCxCLK cycles
tSU,MI SOMI input data setup time T 2.0 V 60 ns
3.0 V 42
tHD,MI SOMI input data hold time T 2.0 V 0 ns
3.0 V 0
tVALID,MO SIMO output data valid time(2) UCLK edge to SIMO valid,
CL = 20 pF		 T 2.0 V 20 ns
3.0 V 20
tHD,MO SIMO output data hold time(3) CL = 20 pF T 2.0 V –9.0 ns
3.0 V –6.0
(1) fUCxCLK = 1/2tLO/HI with tLO/HI = max(tVALID,MO(eUSCI) + tSU,SI(Slave), tSU,MI(eUSCI) + tVALID,SO(Slave))
For the slave parameters tSU,SI(Slave) and tVALID,SO(Slave), see the SPI parameters of the attached slave.
(2) Specifies the time to drive the next valid data to the SIMO output after the output changing UCLK clock edge. See the timing diagrams in Figure 4-11 and Figure 4-12.
(3) Specifies how long data on the SIMO output is valid after the output changing UCLK clock edge. Negative values indicate that the data on the SIMO output can become invalid before the output changing clock edge observed on UCLK. See the timing diagrams in Figure 4-11 and Figure 4-12.

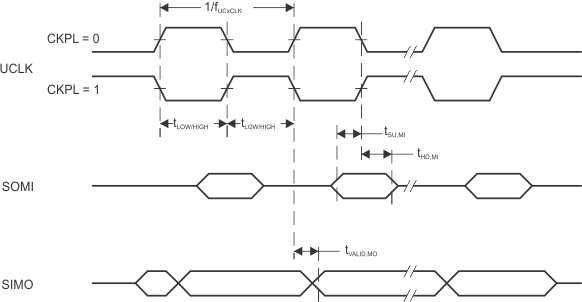

MSP430FR2355 MSP430FR2353 MSP430FR2155 MSP430FR2153 eUSCI_master_CKPH0.gifFigure 4-11 SPI Master Mode, CKPH  = 0

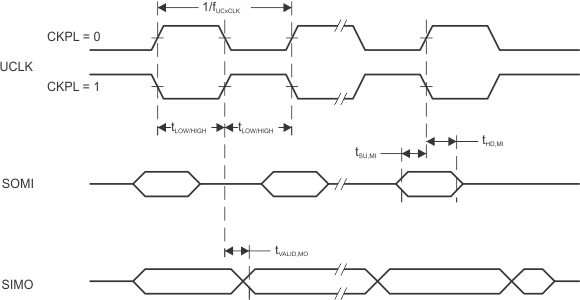

MSP430FR2355 MSP430FR2353 MSP430FR2155 MSP430FR2153 eUSCI_master_CKPH1.gifFigure 4-12 SPI Master Mode, CKPH  = 1

Table 4-18 lists the switching characteristics of the eUSCI in SPI slave mode.
