5.17 PUC and POR

PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
t(POR_Delay) Internal time delay to release POR 2.2 V, 3 V 150 250 µs
VPOR VCC threshold at which POR release delay time begins(1) TA = −40°C 1.4 1.8 V
TA = 25°C 1.1 1.5
TA = 85°C 0.8 1.2
V(min) VCC threshold required to generate a POR(2) VCC |dV/dt| ≥ 1 V/ms 2.2 V, 3 V 0.2 V
t(reset) RST/NMI low time for PUC or POR Reset is accepted internally 2.2 V, 3 V 2 µs
(1) VCC rise time dV/dt ≥ 1 V/ms
(2) When driving VCC low to generate a POR condition, drive VCC to 200 mV or lower with a dV/dt equal to or less than −1 V/ms. The corresponding rising VCC must also meet the dV/dt requirement equal to or greater than +1 V/ms.

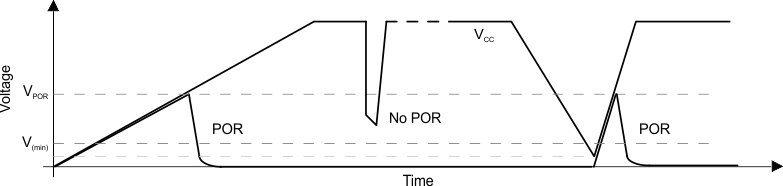

MSP430F149 MSP430F148 MSP430F147 MSP430F1491 MSP430F1481 MSP430F1471 MSP430F135 MSP430F133 vpor-vs-supply-voltage.gifFigure 5-10 VPOR vs Supply Voltage

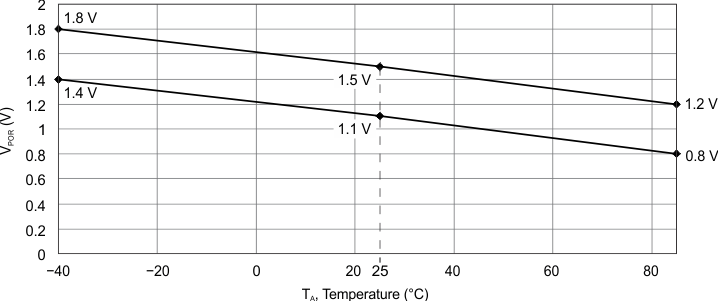

MSP430F149 MSP430F148 MSP430F147 MSP430F1491 MSP430F1481 MSP430F1471 MSP430F135 MSP430F133 vpor-vs-temperature.gifFigure 5-11 VPOR vs Temperature
