B.1 Optional External Hardware (Not Included)

The input of the ADS1x98ECG-FE requires a DB15 connector. Figure 45 illustrates the most optimal cable connection to the ADS1298ECG-FE. Figure 46 and Figure 47 show two alternate ways that cables can be constructed to interface with the ADS1x98ECG-FE. Figure 48 shows an alternate testing tool to the instrument used in the tests for this user guide (refer to Section 5.7.1).

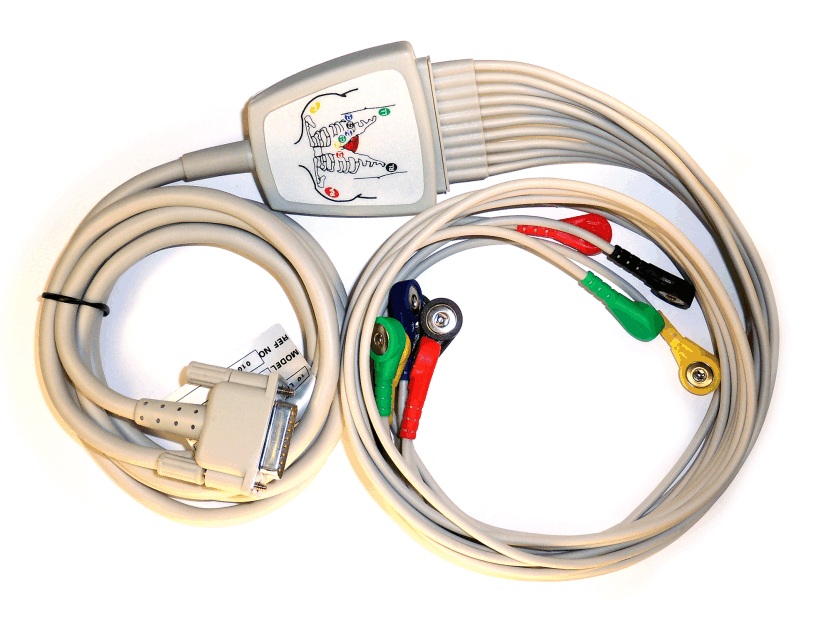

hdwe_shield_connect_bau171.pngFigure 45. 15-Pin, Shielded Connector from Biometric Cables

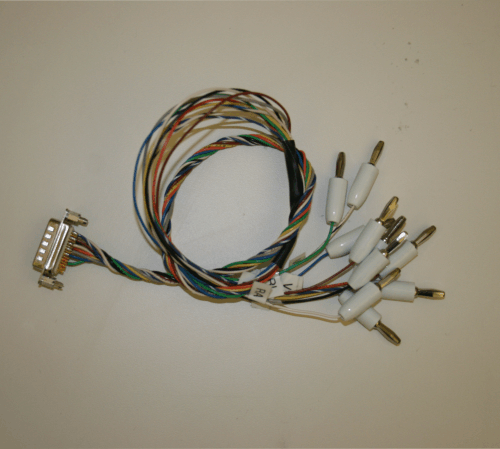

hdwe_15pin_twist_banjack_bau171.pngFigure 46. 15-Pin, Twisted Wire Cable to Banana Jacks

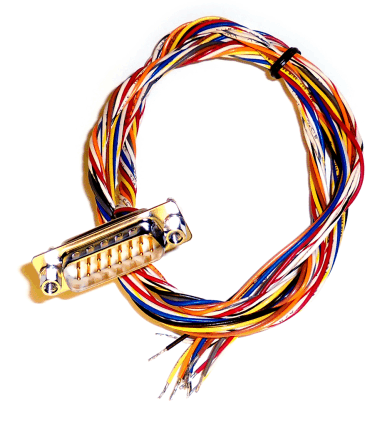

hdwe_15pin_twist_bau171.pngFigure 47. 15-Pin, Twisted Wire Cable

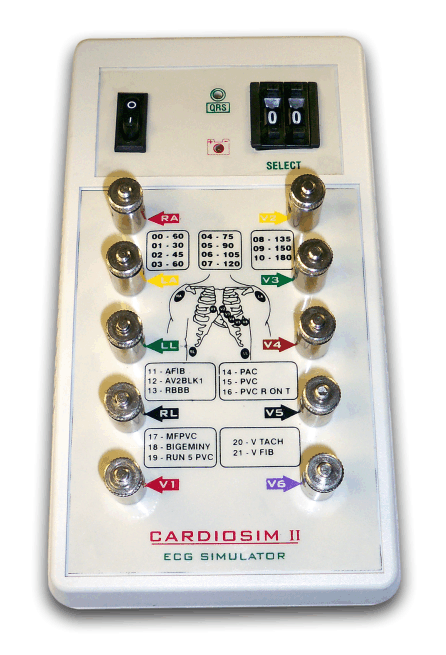

evm_hdwe_cardio_sim_bau171.pngFigure 48. Cardiosim ECG Simulator Tool
