6.6 Typical Characteristics: IOUT = 50 mA

at TJ = 25°C, VIN = VOUT(nom) + 0.3 V, VBIAS = 5 V, IOUT = 50 mA, VEN = VIN, CIN = 1 μF, CBIAS = 4.7 μF, and COUT = 10 μF (unless otherwise noted)

VOUT = 0.8 V, IOUT = 1.5 A, CBIAS = 0.1 μF, COUT = 10 μF,
CSS = 10 nF, VEN = VBIAS = 6 V
Figure 6-1 IN PSRR vs Frequency and VIN
VIN = 1.1 V, VOUT = 0.8 V, CBIAS = 0.1 μF, COUT = 10 μF,
CSS = 10 nF, VEN = VBIAS = 6 V
Figure 6-3 IN PSRR vs Frequency and IOUT for VOUT = 0.8 V
VIN = 3.6 V, VOUT = 3.3 V, CBIAS = 0.1 μF, COUT = 10 μF,
CSS = 10 nF, VEN = VBIAS = 6 V
Figure 6-5 IN PSRR vs Frequency and IOUT for VOUT = 3.3 V
VIN = 1.1 V, VOUT = 0.8 V, IOUT = 1.5 A, CIN = 10 μF,
COUT = 10 μF, CSS = 10 nF, VEN = 6 V
Figure 6-7 BIAS PSRR vs Frequency and VBIAS
VEN = VBIAS, VIN = 1.1 V, VOUT = 0.8 V, IOUT = 1.5 A,
CIN = 10 μF, COUT = 10 μF, CSS = 10 nF, CBIAS = 0.1 μF
Figure 6-9 Output Voltage Noise Density vs Frequency and VBIAS
VBIAS = 5 V, VOUT = 0.8 V

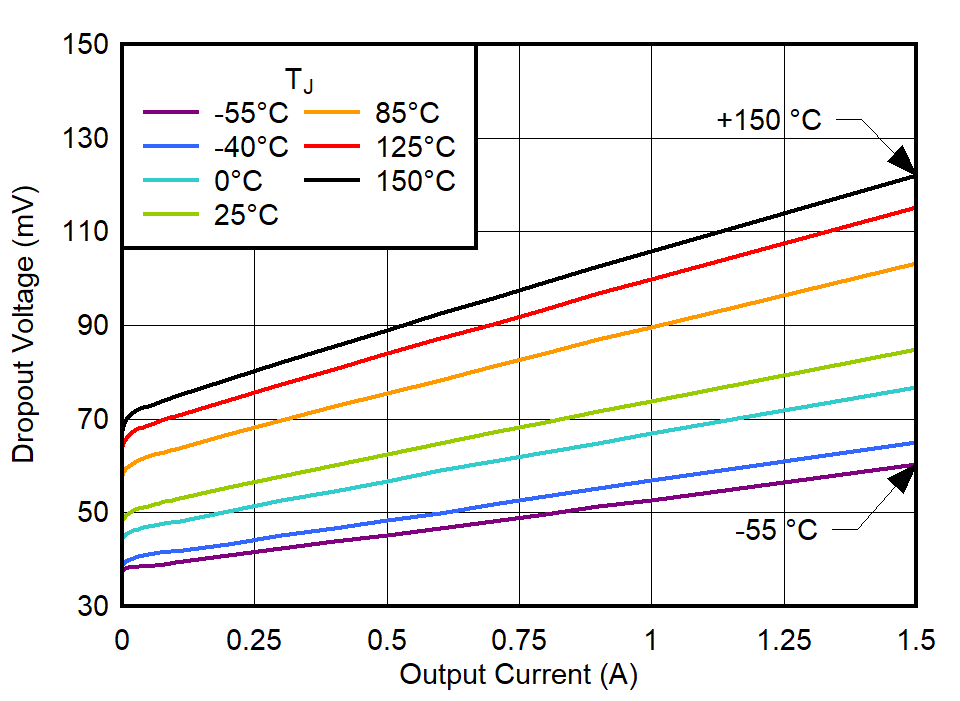

Figure 6-11 IN-to-OUT Dropout Voltage vs IOUT and Temperature (TJ)
VIN = 1.1 V, VBIAS = 5 V, VOUT = 0.8 V
Figure 6-13 Load Regulation vs 0-mA to 50-mA Output Current
VOUT = 0.8 V, VBIAS = 5 V, IOUT = 50 mA
Figure 6-15 Line Regulation vs Input Voltage
VOUT = 0.8 V, VBIAS = 5.0 V, IOUT = 50 mA
Figure 6-17 IN Pin Quiescent Current vs Input Voltage
VOUT = 0.8 V, VBIAS = 5.0 V, IOUT = 1.5 A
Figure 6-19 BIAS Pin Quiescent Current vs Input Voltage
VBIAS = 5 V, VEN = 0 V
Figure 6-21 Shutdown Current (GND Pin) vs Input Voltage

Figure 6-23 Current Limit vs Output Voltage
VIN = 1.1 V, VOUT = 0.8 V, IOUT = 1.5 A, CBIAS = 0.1 μF,
COUT = 10 μF, VEN = VBIAS = 6 V
Figure 6-2 IN PSRR vs Frequency and CSS
VIN = 2.1 V, VOUT = 1.8 V, CBIAS = 0.1 μF, COUT = 10 μF,
CSS = 10 nF, VEN = VBIAS = 6 V
Figure 6-4 PSRR vs Frequency and IOUT for VOUT = 1.8 V
VIN = 1.1 V, VOUT = 0.8 V, IOUT = 1.5 A, CBIAS = 0.1 μF,
CSS = 10 nF, VEN = VBIAS = 6 V
Figure 6-6 IN PSRR vs Frequency and COUT
VEN = VIN = 1.1 V, VOUT = 0.8 V, IOUT = 1.5 A, CIN = 10 μF, COUT = 10 μF, CSS = 10 nF, VBIAS = 6 V
Figure 6-8 BIAS PSRR vs Frequency and IOUT
VEN = VBIAS, VIN = 1.1 V, VOUT = 0.8 V, CIN = 10 μF,
COUT = 10 μF, CSS = 10 nF, CBIAS = 0.1 μF
Figure 6-10 Output Voltage Noise Density vs Frequency and IOUT
VIN = 1.1 V, VOUT = 0.8 V
Figure 6-12 BIAS-to-OUT Dropout Voltage vs IOUT and Temperature (TJ)
VIN = 1.1 V, VBIAS = 5 V, VOUT = 0.8 V
Figure 6-14 Load Regulation vs ≥50-mA Output Current
VBIAS = 5 V, VOUT = 0.8 V, IOUT = 50 mA
Figure 6-16 Output Voltage vs Bias Voltage
VOUT = 0.8 V, VBIAS = 5.0 V
Figure 6-18 IN Pin Quiescent Current vs Output Current
VIN = 1.1 V, VOUT = 0.8 V, VBIAS = 5.0 V
Figure 6-20 BIAS Pin Quiescent Current vs Output Current
VIN = 1.1 V, VEN = 0 V
Figure 6-22 Shutdown Current (GND Pin) vs Bias Voltage
