7.6 Typical Characteristics

Figure 7-1 BPEXT Switch-over Voltage vs. Junction Temperature

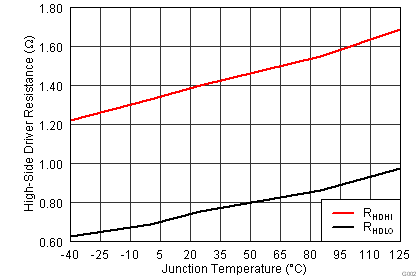

Figure 7-3 High-Side Driver Resistance vs. Junction Temperature

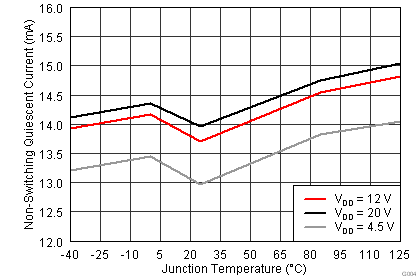

Figure 7-5 Non-Switching Quiescent Current vs. Junction Temperature

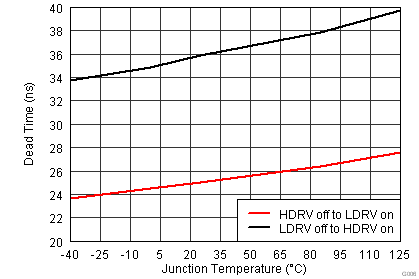

Figure 7-7 Dead Time vs. Junction Temperature
Figure 7-2 Reference Voltage vs. Junction Temperature
Figure 7-4 Low-Side Driver Resistance vs. Junction Temperature
Figure 7-6 Switching Frequency vs. Junction Temperature

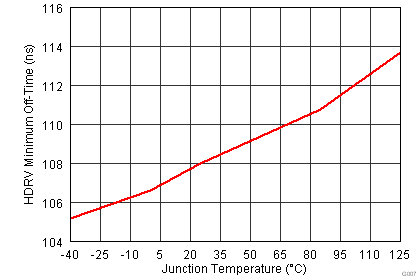

Figure 7-8 HDRV Minimum Off-Time vs. Junction Temperature
