ZHCSJC6F March 2016 – June 2018 TDA2E
PRODUCTION DATA.
NOTE
For more information, see Power Reset and Clock Management / PRCM Environment / External Clock Signal and Power Reset / PRCM Functional Description / PRCM Clock Manager Functional Description section of the Device TRM.
NOTE
Audio Back End (ABE) module is not supported for this family of devices, but “ABE” name is still present in some clock or DPLL names.
The device operation requires the following clocks:

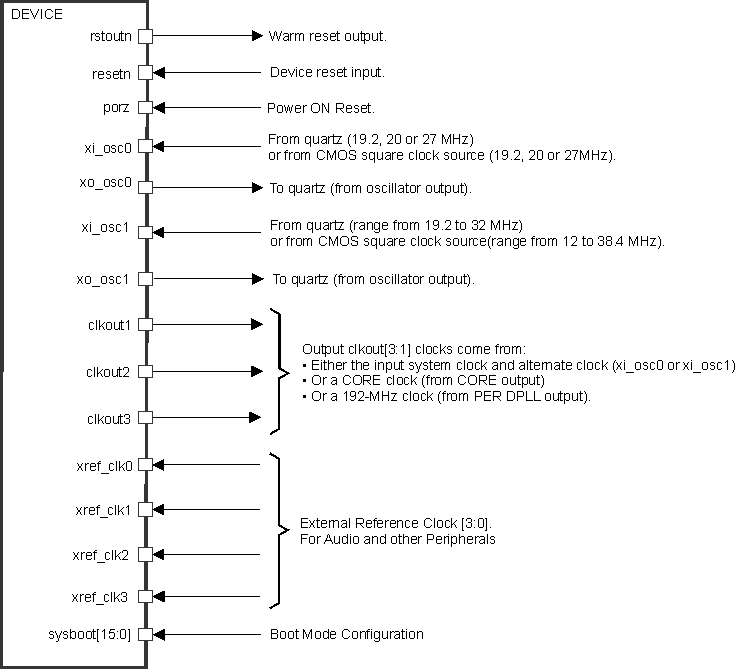

Figure 6-1 shows the external input clock sources and the output clocks to peripherals.
