9.10.8 Port P6 (P6.0 to P6.7) Input/Output With Schmitt Trigger

Figure 9-10 shows the port diagram. Table 9-50 summarizes the selection of the pin functions.

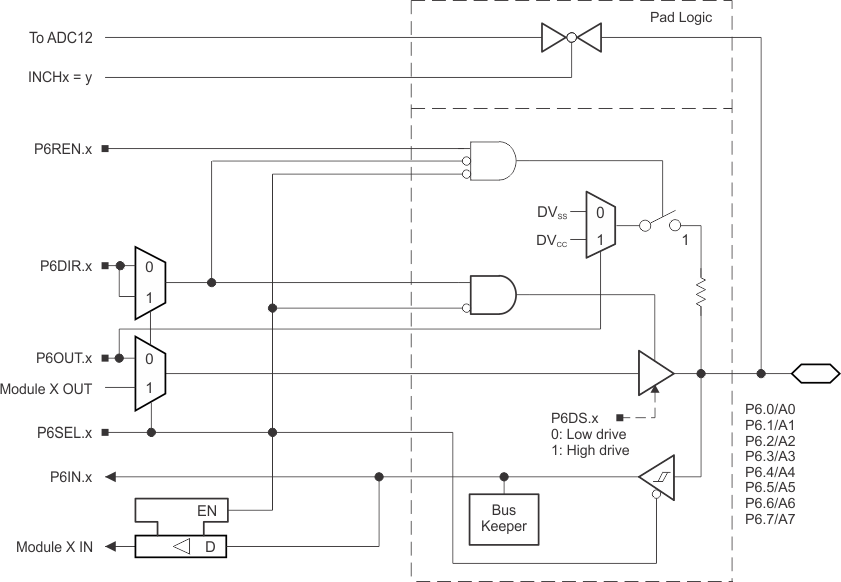

GUID-0B484652-A2DF-43B2-B475-EB4A85FC69E3-low.gif Figure 9-10 Port P6 (P6.0 to P6.7) Diagram
Table 9-50 Port P6 (P6.0 to P6.7) Pin Functions
PIN NAME (P6.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P6DIR.x P6SEL.x INCHx
P6.0/A0 0 P6.0 (I/O) I: 0; O: 1 0 X
A0(2) (3) X X 0
P6.1/A1 1 P6.1 (I/O) I: 0; O: 1 0 X
A1(2) (3) X X 1
P6.2/A2 2 P6.2 (I/O) I: 0; O: 1 0 X
A2(2) (3) X X 2
P6.3/A3 3 P6.3 (I/O) I: 0; O: 1 0 X
A3(2) (3) X X 3
P6.4/A4 4 P6.4 (I/O) I: 0; O: 1 0 X
A4(2) (3) X X 4
P6.5/A5 5 P6.5 (I/O) I: 0; O: 1 0 X
A5(1) (2) (3) X X 5
P6.6/A6 6 P6.6 (I/O) I: 0; O: 1 0 X
A6(2) (3) X X 6
P6.7/A7 7 P6.7 (I/O) I: 0; O: 1 0 X
A7(2) (3) X X 7
(1) X = Don't care
(2) Setting the P6SEL.x bit disables the output driver and the input Schmitt trigger to prevent parasitic cross currents when applying analog signals.
(3) The ADC12_A channel Ax is connected internally to AVSS if not selected by the respective INCHx bits.
