7.8 Timing Diagrams

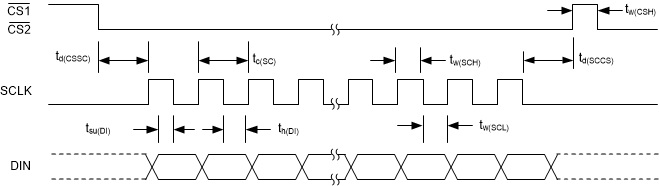

GUID-20200709-SS0I-RK0Z-PBTM-SVKZLSJCS2RV-low.gif Figure 7-1 Serial Interface Timing Requirements
DRDY indicates the data-ready function in the interval between CS1 low and the first SCLK rising edge, and in the interval between the last SCLK falling edge of the command to CS1 high. DOUT indicates the data output function during the data read operation.
Figure 7-2 Serial Interface Switching Characteristics
GUID-20200709-SS0I-LSKH-JHMW-G02JJS23WRGL-low.gif Figure 7-3 Conversion Control Timing Requirements
GUID-20200709-SS0I-B7MH-SSWT-ZXMFQMHH4TZK-low.gif Figure 7-4 Power-Up Characteristics
GUID-20200709-SS0I-CSZW-LT9M-2ZHNWXHQZNFM-low.gif Figure 7-5 RESET Pin and Reset Command Timing Requirements
