3 说明

ADS125H01 是一款 ±20V 输入、24 位、Δ-Σ 模数转换器 (ADC)。该 ADC 具有低噪声可编程增益放大器 (PGA)、时钟振荡器以及信号或基准电压超范围监控器。

与分立式解决方案相比，该器件将宽输入电压范围、±18V 电源 PGA 和 ADC 集成到单个封装中，可将电路板面积减小多达 50%。

具有 0.125 至 128 的可编程衰减和增益（相当于 ±20V 至 ±20mV 的等效输入范围），因而无需外部衰减器或外部增益级。1GΩ 的最低输入阻抗可减小由传感器负载导致的误差。此外，由于具有低噪声和低漂移性能，因而可以直接连接到受高共模电压影响的应变仪桥和热电偶传感器。

数字滤波器的可编程范围是从 2.5SPS 到 40kSPS。数据速率 ≤50SPS 或 60SPS 时，50Hz 和 60Hz 的线路周期噪声衰减可减小测量误差。在大多数数据速率下，滤波器可提供无延迟转换数据，从而在外部通道定序期间实现高数据吞吐量。

ADS125H01 采用 5mm × 5mm VQFN 封装，额定工作温度范围为 –40°C 至 +125°C。

器件信息(1)
器件型号封装封装尺寸（标称值）
ADS125H01VQFN (32)5.00mm × 5.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

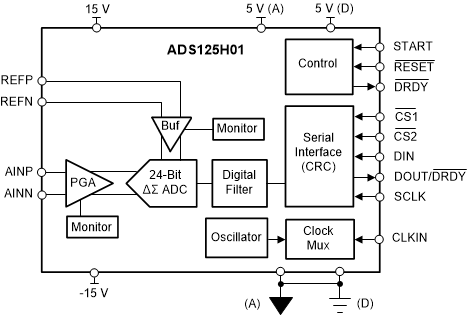

GUID-96F4EB1D-1516-49DC-9C82-AB361C74C011-low.gif功能模块图
