7.4.2 PLL Operating Modes

Both PLL channels have identical functionality and modes of operation, but each are configured and operate independently. The operating mode for both channels can be different at any time. The following sections describe the PLL modes of operation shown in Figure 7-39.

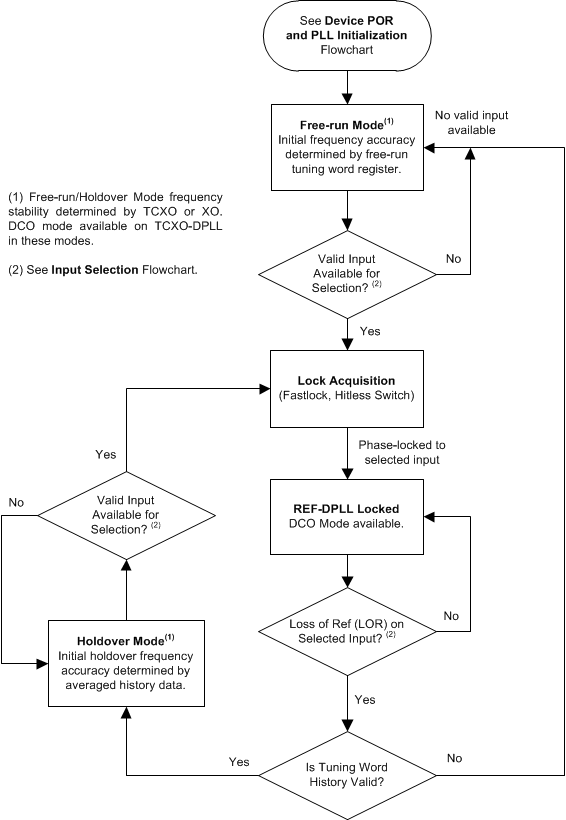

LMK05028 PLL Operating ModeFigure 7-39 PLL Operating Mode
