7.3.15 Clock Output Interfacing and Termination

Figure 7-29 to Figure 7-33 show the recommended output interfacing and termination circuits. Unused clock outputs can be left floating and powered down by programming.

LMK05028 2.5-V LVCMOS Output to 2.5-V LVCMOS Receiver
Same applies for 1.8-V LVCMOS output to 1.8-V LVCMOS receiver.
Figure 7-29 2.5-V LVCMOS Output to 2.5-V LVCMOS Receiver

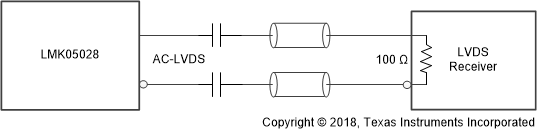

LMK05028 AC-LVDS Output to LVDS Receiver With Internal Termination/BiasingFigure 7-30 AC-LVDS Output to LVDS Receiver With Internal Termination/Biasing

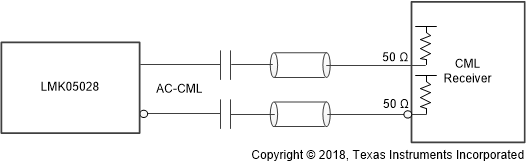

LMK05028 AC-CML Output to CML Receiver With Internal Termination/BiasingFigure 7-31 AC-CML Output to CML Receiver With Internal Termination/Biasing
LMK05028 AC-LVPECL Output to LVPECL Receiver With External Termination/BiasingFigure 7-32 AC-LVPECL Output to LVPECL Receiver With External Termination/Biasing

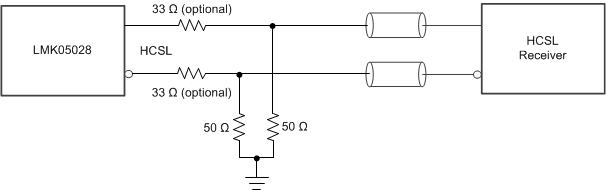

LMK05028 HCSL Output to HCSL Receiver With External Source Termination
If HCSL Internal Termination (50-Ω to GND) is enabled, replace 33-Ω with 0-Ω and remove 50-Ω external resistors.
Figure 7-33 HCSL Output to HCSL Receiver With External Source Termination
