6.1 Output Clock Test Configurations

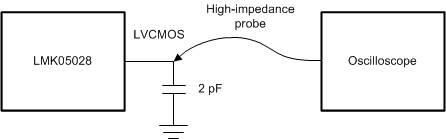

LMK05028 LVCMOS Output Test ConfigurationFigure 6-1 LVCMOS Output Test Configuration

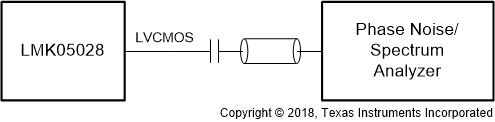

LMK05028 LVCMOS Output Phase Noise Test ConfigurationFigure 6-2 LVCMOS Output Phase Noise Test Configuration
LMK05028 AC-LVPECL, AC-LVDS, AC-CML Output AC Test ConfigurationFigure 6-3 AC-LVPECL, AC-LVDS, AC-CML Output AC Test Configuration
LMK05028 AC-LVPECL, AC-LVDS, AC-CML Output Phase Noise Test ConfigurationFigure 6-4 AC-LVPECL, AC-LVDS, AC-CML Output Phase Noise Test Configuration

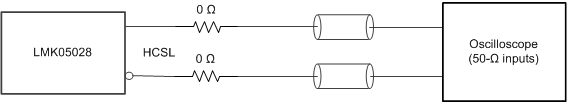

LMK05028 HCSL Output Test ConfigurationFigure 6-5 HCSL Output Test Configuration
LMK05028 HCSL Output Phase Noise Test ConfigurationFigure 6-6 HCSL Output Phase Noise Test Configuration

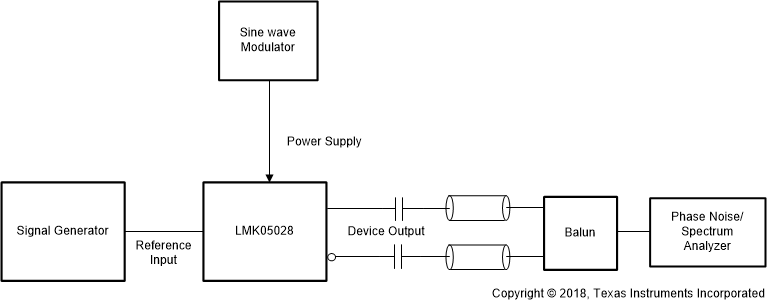

LMK05028 Power Supply Noise Rejection (PSNR) Test Configuration
Single-sideband spur level measured in dBc with a known noise amplitude and frequency injected onto the device power supply.
Figure 6-7 Power Supply Noise Rejection (PSNR) Test Configuration
