USER'S GUIDE

KeyStone Architecture Multicore Navigator

Preface

The Multicore Navigator uses a Queue Manager Subsystem (QMSS) and a Packet DMA (PKTDMA) to control and implement high-speed data packet movement within the device. This reduces the traditional internal communications load on the device DSPs significantly, increasing overall system performance.

About This Manual

This document describes the functionality, operational details, and programming information for the PKTDMA and the components of the QMSS in KeyStone architecture devices.

Trademarks

All trademarks are the property of their respective owners.

Notational Conventions

This document uses the following conventions:

  • Commands and keywords are in boldface font.
  • Arguments for which you supply values are in italic font.
  • Terminal sessions and information the system displays are in screen font.
  • Information you must enter is in boldface screen font.
  • Elements in square brackets ([ ]) are optional.

Notes use the following conventions:

NOTE

Means reader take note. Notes contain helpful suggestions or references to material not covered in the publication.

The information in a caution or a warning is provided for your protection. Please read each caution and warning carefully.

CAUTION

Indicates the possibility of service interruption if precautions are not taken.

WARNING

Indicates the possibility of damage to equipment if precautions are not taken.

Related Documentation from Texas Instruments

Antenna Interface 2 (AIF2) for KeyStone Devices User Guide SPRUGV7
Fast Fourier Transform Coprocessor (FFTC) for KeyStone Devices User Guide SPRUGS2
Memory Protection Unit (MPU) for KeyStone Devices User Guide SPRUGW5
Packet Accelerator (PA) for KeyStone Devices User Guide SPRUGS4
Serial RapidIO (SRIO) for KeyStone Devices User Guide SPRUGW1

1 Introduction

1.1 Terminology Used in This Document

Table 1-1 defines the important acronyms used in this document.

Table 1-1 Terminology

Acronym Definition
AIF2 Antenna interface subsystem
BCP Bit coprocessor
CPPI Communications port programming interface (Multicore Navigator)
EOP End of packet
FFTC FFT coprocessor subsystem
FDQ Free descriptor queue
MOP Middle of packet
NETCP Network Coprocessor (new name for Packet Accelerator)
OEM Open event machine
PA, PASS Packet accelerator subsystem
PDSP Packed data structure processor
PKTDMA Packet DMA, consisting of two independent halves: RX DMA and TX DMA (previously was CDMA for CPPI DMA -- this is obsolete)
PS Protocol specific
QM, QMSS Hardware queue manager; queue manager sub-system
QoS Quality of service (PDSP firmware)
RX DMA RX half of the PKTDMA
SOP Start of packet
SRIO Serial rapid I/O subsystem
TX DMA TX half of the PKTDMA

1.2 KeyStone I Features

Multicore Navigator provides the following features in KeyStone I devices:

  • One hardware queue manager, including:
    • 8192 queues (some dedicated for specific use)
    • 20 descriptor memory regions
    • 2 linking RAMs (one internal to QMSS, supporting 16K descriptors)
  • Several PKTDMAs, located in the following subsystems:
    • QMSS (infrastructure, or core-to-core PKTDMA)
    • AIF2
    • BCP
    • FFTC (A, B, C)
    • NETCP (PA)
    • SRIO
  • Multi-core host notification via interrupt generation (accumulator functionality)

Multicore Navigator was developed based on the design goals while incorporating ideas from leading-edge architectures for Ethernet, ATM, HDLC, IEEE1394, 802.11, and USB communications modules.

Some general features of Multicore Navigator:

  • Centralized buffer management
  • Centralized packet queue management
  • Protocol-independent packet-level interface
  • Support for multi-channel / multi-priority queuing
  • Support for multiple free buffer queues
  • Efficient host interaction that minimizes host processing requirements
  • Zero copy packet handoff

Multicore Navigator provides the following services to the host:

  • Mechanism to queue an unlimited number of packets per channel
  • Mechanism to return buffers to host on packet transmit completion
  • Mechanism to recover queued buffers after transmit channel shut down
  • Mechanism to allocate buffer resources to a given receive port
  • Mechanism to pass buffers to host on completion of a packet reception
  • Mechanism to gracefully stop reception for receive channel shut down

1.3 KeyStone I Functional Block Diagram

Figure 1-1 shows the major functional components of Multicore Navigator for KeyStone I devices. The queue manager sub system (QMSS) contains a queue manager, the infrastructure PKTDMA, and two accumulator PDSPs with timers. The block marked Hardware Block is a Multicore Navigator peripheral (such as SRIO), and shows a detailed view of the PKTDMA sub-blocks with interfaces.

Figure 1-1 Multicore Navigator Block Diagram (KeyStone I)CPPI_Sim_Drawings.gif

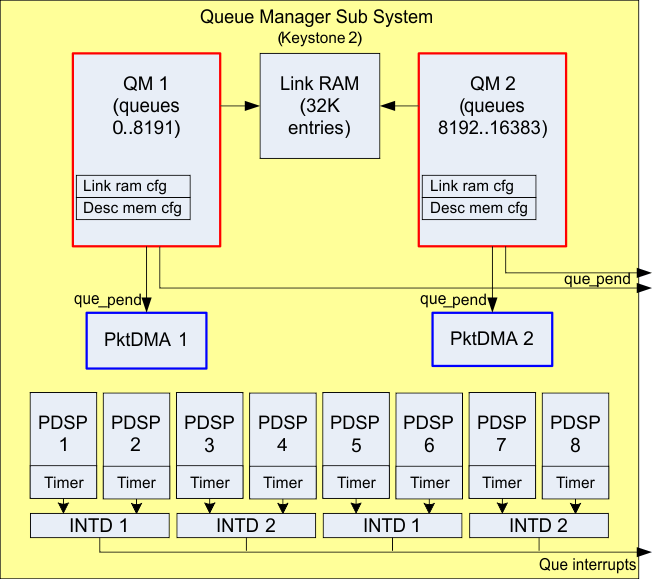

1.4 KeyStone II Changes to QMSS

For KeyStone II devices, the following changes were made to the Queue Manager Sub System:

  • K2K, K2H only: Two hardware queue managers (QM1, QM2), including:
    • 8192 queues per queue manager
    • 64 descriptor memory regions per queue manager
    • 3 linking RAMs (one internal to QMSS, supporting 32K descriptors)
  • K2K, K2H only: Two infrastructure PKTDMAs (PKTDMA1 driven by QM1, PKTDMA2 driven by QM2)
  • Eight packed-data structure processors (PDSP1 to PDSP8), each with its own dedicated Timer module
  • Two interrupt distributors (INTD1, INTD2), which service two pairs of PDSPs.

These changes are shown in Figure 1-2. K2L and K2E devices do not contain QM2 or PKTDMA2, and have a 16K entry Linking RAM.

Figure 1-2 Queue Manager Sub System for KeyStone IIQueue_Manager_SS_for_Keystone_2.gif

1.5 KeyStone II QMSS Modes of Use

As described in the previous section, the KeyStone II QMSS is roughly a doubling of the modules in the KeyStone I QMSS. One component that was doubled in size, but not in number, is the internal linking RAM. Both QM1 and QM2 share this component. The programming of each QM’s linking RAM and descriptor memory region registers determines if the linking RAM is used cooperatively (Shared Mode) or independently (Split Mode).

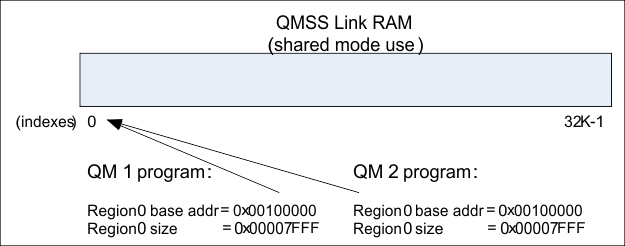

1.5.1 Shared Mode

In this mode, both QMs share the entire internal linking RAM. Because both QMs will be writing into the same areas of the linking RAM, both QMs must be programmed with identical descriptor memory regions so that there will be no colliding indexes written into the linking RAM, which will corrupt it. The linking RAM registers in both QMs are also programmed identically, as shown in Figure 1-3. Advantage: The two QMs can be treated as a single double-sized KeyStone I QM.

Figure 1-3 Queue Manager Linking RAM — Shared Mode for KeyStone IIQueue_Manager_Linking_RAM_Shared_Mode_for_KS_2.gif

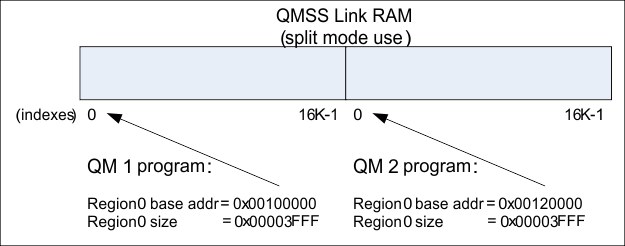

1.5.2 Split Mode

This is like having two independently operating KeyStone I QMs. In this mode, each QM has a non-overlapping partition of the linking RAM to use (not necessarily equal halves as shown here). This allows each QM to be programmed with descriptor memory regions that are independent of the other QM. Note that the descriptor region indexes must begin with 0 for each QM configuration, because the indexes are relative to the address given as the base of its linking RAM. Figure 1-1 shows the linking RAM configuration for this mode. Advantage: 128 total memory regions provides much better granularity of descriptor sizing/counts.

Figure 1-4 Queue Manager Linking RAM — Split Mode for KeyStone IIQueue_Manager_Linking_RAM_Split_Mode_for_KS_2.gif


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
