Load and Line Regulation

Figure 2-9 and Figure 2-10 shows the load regulation measured on the TPS54J060EVM-067. The output voltage of the TPS54J061EVM-067 is only slightly higher at 1.81V typical due to the different feedback divider.

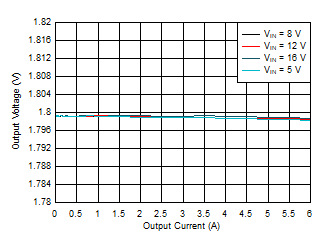

GUID-2F42CDFF-CDC3-465C-BCB9-32F122DADECD-low.gifFigure 2-9 Load Regulation – FCCM

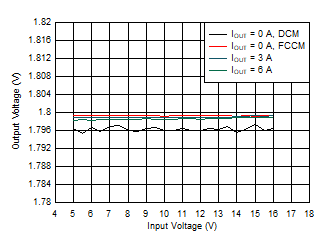

GUID-77EC4493-2E1E-4D91-9AA4-A21D6346C862-low.gifFigure 2-11 Line Regulation

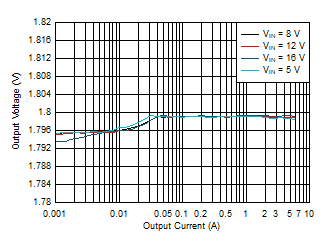

GUID-CBA91845-E957-4614-AE84-9C88995B5F34-low.gifFigure 2-10 Load Regulation – DCM
