Input Voltage Ripple

Figure 2-18, Figure 2-19, and Figure 2-20 show the TPS54J060EVM-067 and TPS54J061EVM-067 input voltage ripple for VIN = 12 V. The ripple voltage is measured directly across the ceramic input capacitor closest to the input terminal.

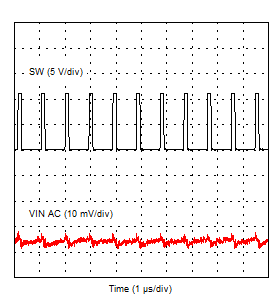

GUID-E4BAFE4D-A0C4-4E0F-96C4-9564E892BE47-low.gifFigure 2-18 Input Ripple – FCCM, 0.1-A Load

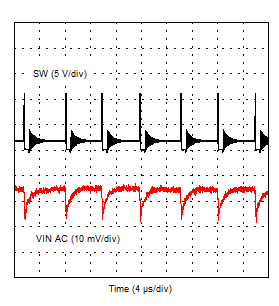

GUID-B343F114-CDE9-4865-9EA7-D2608830CB73-low.gifFigure 2-20 Input Ripple – DCM, 0.1-A Load

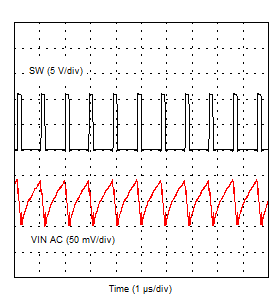

GUID-7210EB14-1A21-4853-B38E-17CFD933EAEB-low.gifFigure 2-19 Input Ripple – FCCM, 6-A Load
