2.7 Output Voltage Ripple

Figure 2-15, Figure 2-16, and Figure 2-17 show the TPS54J060EVM-067 and TPS54J061EVM-067 output voltage ripple for VIN = 12 V. The ripple voltage is measured directly across the last ceramic output capacitor.

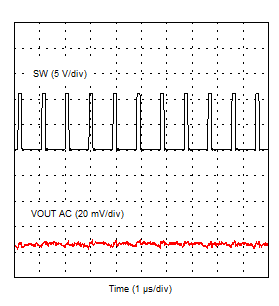

GUID-D4E78775-7E27-42B7-9CD0-9B02E844DA50-low.gifFigure 2-15 Output Ripple – FCCM, 0.1-A Load

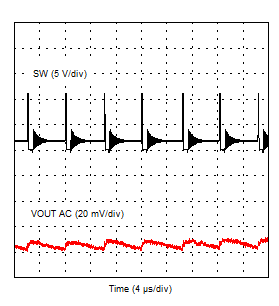

GUID-A564EC7F-913B-4655-892F-8AF6D76B0586-low.gifFigure 2-17 Output Ripple – DCM, 0.1-A Load

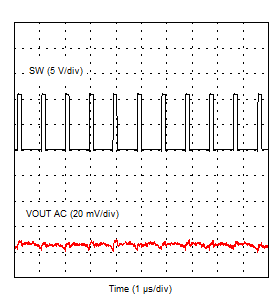

GUID-619F3CFA-5E1A-4C24-BF92-97ECECD102E9-low.gifFigure 2-16 Output Ripple – FCCM, 6-A Load
