2.6 Loop Characteristics

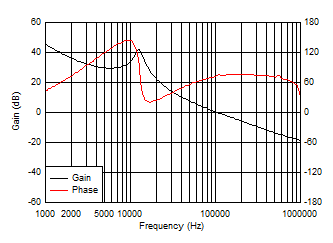

Figure 2-14 shows the TPS54J060EVM-067 and TPS54J061EVM-067 frequency-response characteristics. Gain and phase plots are shown for input voltage of 12 V with 3 A constant current load.

GUID-ACE180C9-7359-48D2-B8B7-A28F6A493785-low.gifFigure 2-14 Bode Plot
