8.6.10 Power-Up Sequence 0 (UPSEQ0) Register (address = 0x09h) [reset = E4h]

Figure 37. UPSEQ0 Register
7 6 5 4 3 2 1 0
VDDH_UP[1:0] VPOS_UP[1:0] VEE_UP[1:0] VNEG_UP[1:0]
R/W-3h R/W-2h R/W-1h R/W-0h
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Table 12. UPSEQ0 Register Field Descriptions

Bit Field Type Reset Description
7-6 VDDH_UP R/W 3h VDDH power-up order
0h = Power up on STROBE1
1h = Power up on STROBE2
2h = Power up on STROBE3
3h = Power up on STROBE4
5-4 VPOS_UP R/W 2h VPOS power-up order
0h = Power up on STROBE1
1h = Power up on STROBE2
2h = Power up on STROBE3
3h = Power up on STROBE4
3-2 VEE_UP R/W 1h VEE power-up order
0h = Power up on STROBE1
1h = Power up on STROBE2
2h = Power up on STROBE3
3h = Power up on STROBE4
1-0 VNEG_UP R/W 0h VNEG power-up order
0h = Power up on STROBE1
1h = Power up on STROBE2
2h = Power up on STROBE3
3h = Power up on STROBE4

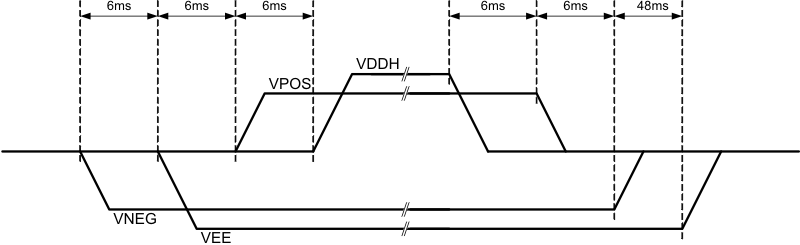

TPS65185 TPS651851 default_powerseq_lvsaq8.gifFigure 38. Default Power-Up/Down Sequence
