Typical Characteristics

TA = 25°C, fSW = 500 kHz, unless otherwise noted.
TA = 25°C, fSW = 500 kHz, unless otherwise noted.GUID-20201119-CA0I-FZG2-DBCK-KC1HZNZNBBJ2-low.gif
VIN = 2.7 V; 3.6 V; 4.2 V; 7.2 V VOUT = 13 V
Figure 7-1 Efficiency vs Output Current VOUT = 13 V. TA = 25°C, fSW = 500 kHz, unless otherwise noted.
VIN = 3.6 V; 6 V; 7.2 V; 8.4 V VOUT = 16 V

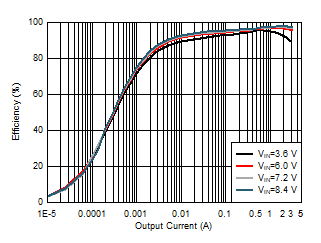

Figure 7-3 Efficiency vs Output Current, VOUT = 16 V
Separate power VIN and 3.3 V signal VIN VOUT = 5.5 V

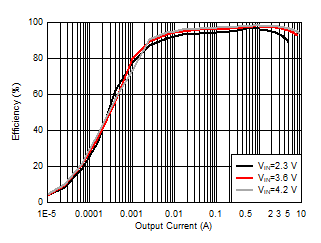

Figure 7-5 Efficiency vs Output Current, VOUT = 5.5 V
Figure 7-7 Switching Frequency vs Temperature
VIN = 2.0 V; 3.6 V; 7.2 V; 10 V VOUT = 13 V
Figure 7-9 Quiescent Current into VIN vs Temperature
Figure 7-11 Shutdown Current vs Temperature
VIN = 2.7 V; 3.6 V; 4.2 V; 7.2 V VOUT = 13 V
Figure 7-2 Output Voltage vs Output Current, VOUT = 13 V
VIN = 3.6 V; 6 V; 7.2 V; 8.4 V VOUT = 16 V
Figure 7-4 Output Voltage vs Output Current, VOUT = 16 V
Separate power VIN and 3.3 V signal VIN VOUT = 5.5 V
Figure 7-6 Output Voltage vs Output Current, VOUT = 5.5 V
Figure 7-8 Reference Voltage vs Temperature
VIN = 3.6 V VOUT = 4.5 V; 13 V; 18 V

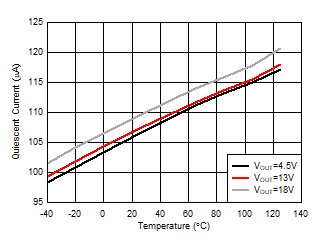

Figure 7-10 Quiescent Current into VOUT vs Temperature
