3 说明

TPS25940xx-Q1 电子保险丝电源开关是功能丰富的紧凑型电源管理器件，具有一整套保护功能。宽工作范围可实现对很多常用直流总线电压的控制。该器件集成的背靠背场效应晶体管 (FET) 可提供双向电流控制，很好地适用于防止系统中的负载侧储能流回故障电源总线。

负载、电源和器件保护由很多可编程特性提供，其中包括过流，dVo/dt 斜率和过压、欠压阈值。为了实现系统状态监视和下游负载控制，此器件提供 PGOOD、FLT 和精密电流监视输出。精确的可编程欠压和过压阈值及模式简化了电源管理设计。

TPS25940xx-Q1 可监视 V(IN) 和 V(OUT)，以便在 V(IN) < (V(OUT) – 66mV) 时提供真正的反向电流阻断。该功能可在输出端发生电池短路故障期间为电源总线提供过压保护支持。

器件信息(1)
器件型号封装封装尺寸（标称值）
TPS25940-Q1超薄四方扁平无引线 (WQFN) (20)3.00mm x 4.00mm
TPS25940L-Q1
TPS259401A-Q1
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

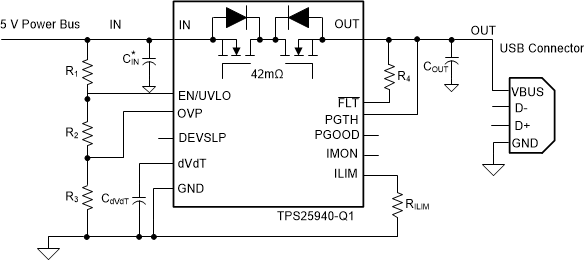

GUID-756061BA-9A8E-4C1D-B36F-7025EFB0226D-low.gif简化版原理图
GUID-4F7D94B7-9113-44A2-8EA6-6BDC762E25AB-low.png输出端电池短路检测与保护
