6.2.5 Multichannel Buffered Serial Port (McBSP) Module

The McBSP module has the following features:

  • Compatible to McBSP in TMS320C54x/TMS320C55x DSP devices, except the DMA features
  • Full-duplex communication
  • Double-buffered data registers which allow a continuous data stream
  • Independent framing and clocking for receive and transmit
  • External shift clock generation or an internal programmable frequency shift clock
  • A wide selection of data sizes including 8-, 12-, 16-, 20-, 24-, or 32-bits
  • 8-bit data transfers with LSB or MSB first
  • Programmable polarity for both frame synchronization and data clocks
  • Highly programmable internal clock and frame generation
  • Support A-bis mode
  • Direct interface to industry-standard CODECs, Analog Interface Chips (AICs), and other serially connected A/D and D/A devices
  • Works with SPI-compatible devices
  • Two 16 x 16-level FIFO for Transmit channel
  • Two 16 x 16-level FIFO for Receive channel

The following application interfaces can be supported on the McBSP:

  • T1/E1 framers
  • MVIP switching-compatible and ST-BUS-compliant devices including:
    • MVIP framers
    • H.100 framers
    • SCSA framers
    • IOM-2 compliant devices
    • AC97-compliant devices (the necessary multiphase frame synchronization capability is provided.)
    • IIS-compliant devices
  • McBSP clock rate = CLKG = CLKSRG/(1 + CLKGDIV) , where CLKSRG source could be LSPCLK, CLKX, or CLKR. (1)
    • 1. Serial port performance is limited by I/O buffer switching speed. Internal prescalers must be adjusted such that the peripheral speed is less than the I/O buffer speed limit—20-MHz maximum.

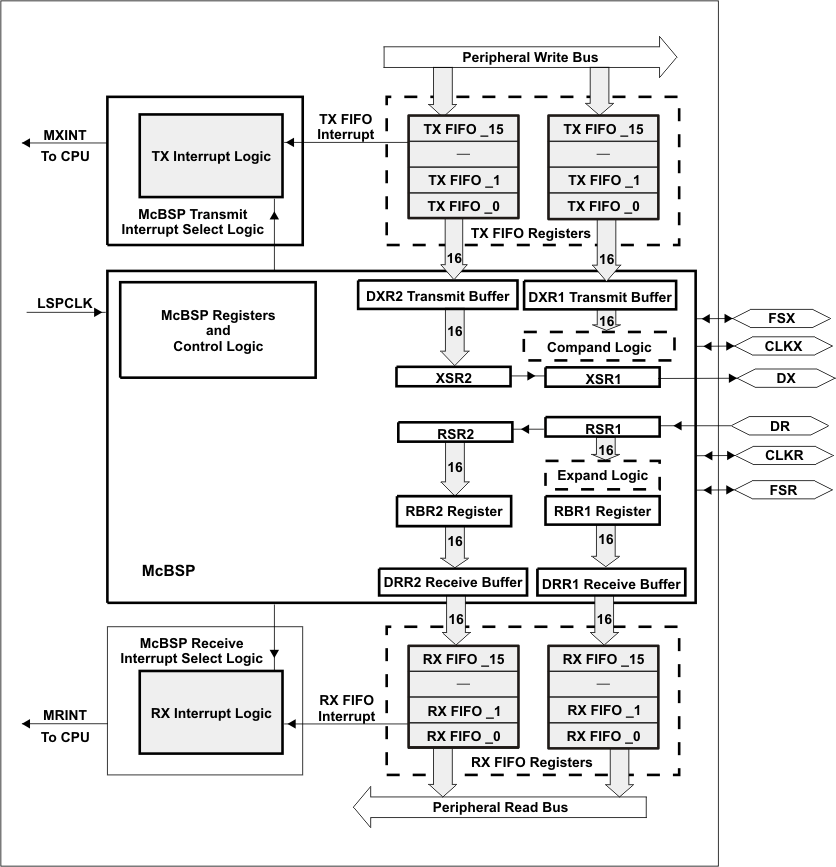

Figure 6-9 shows the block diagram of the McBSP module with FIFO, interfaced to the F281x version of Peripheral Frame 2.

TMS320F2810 TMS320F2811 TMS320F2812 mcbsp_prs174.gifFigure 6-9 McBSP Module With FIFO

Table 6-9 provides a summary of the McBSP registers.

Table 6-9 McBSP Registers

NAME ADDRESS
0x00 78xxh		 TYPE
(R/W)		 RESET VALUE
(HEX)		 DESCRIPTION
DATA REGISTERS, RECEIVE, TRANSMIT(1)
– – – 0x0000 McBSP Receive Buffer Register
– – – 0x0000 McBSP Receive Shift Register
– – – 0x0000 McBSP Transmit Shift Register
DRR2 00 R 0x0000 McBSP Data Receive Register 2
  • Read First if the word size is greater than 16 bits,
    else ignore DRR2
DRR1 01 R 0x0000 McBSP Data Receive Register 1
  • Read Second if the word size is greater than 16 bits,
    else read DRR1 only
DXR2 02 W 0x0000 McBSP Data Transmit Register 2
  • Write First if the word size is greater than 16 bits,
    else ignore DXR2
DXR1 03 W 0x0000 McBSP Data Transmit Register 1
  • Write Second if the word size is greater than 16 bits,
    else write to DXR1 only
McBSP CONTROL REGISTERS
SPCR2 04 R/W 0x0000 McBSP Serial Port Control Register 2
SPCR1 05 R/W 0x0000 McBSP Serial Port Control Register 1
RCR2 06 R/W 0x0000 McBSP Receive Control Register 2
RCR1 07 R/W 0x0000 McBSP Receive Control Register 1
XCR2 08 R/W 0x0000 McBSP Transmit Control Register 2
XCR1 09 R/W 0x0000 McBSP Transmit Control Register 1
SRGR2 0A R/W 0x0000 McBSP Sample Rate Generator Register 2
SRGR1 0B R/W 0x0000 McBSP Sample Rate Generator Register 1
MULTICHANNEL CONTROL REGISTERS
MCR2 0C R/W 0x0000 McBSP Multichannel Register 2
MCR1 0D R/W 0x0000 McBSP Multichannel Register 1
RCERA 0E R/W 0x0000 McBSP Receive Channel Enable Register Partition A
RCERB 0F R/W 0x0000 McBSP Receive Channel Enable Register Partition B
XCERA 10 R/W 0x0000 McBSP Transmit Channel Enable Register Partition A
XCERB 11 R/W 0x0000 McBSP Transmit Channel Enable Register Partition B
PCR 12 R/W 0x0000 McBSP Pin Control Register
RCERC 13 R/W 0x0000 McBSP Receive Channel Enable Register Partition C
RCERD 14 R/W 0x0000 McBSP Receive Channel Enable Register Partition D
XCERC 15 R/W 0x0000 McBSP Transmit Channel Enable Register Partition C
XCERD 16 R/W 0x0000 McBSP Transmit Channel Enable Register Partition D
RCERE 17 R/W 0x0000 McBSP Receive Channel Enable Register Partition E
RCERF 18 R/W 0x0000 McBSP Receive Channel Enable Register Partition F
XCERE 19 R/W 0x0000 McBSP Transmit Channel Enable Register Partition E
XCERF 1A R/W 0x0000 McBSP Transmit Channel Enable Register Partition F
RCERG 1B R/W 0x0000 McBSP Receive Channel Enable Register Partition G
RCERH 1C R/W 0x0000 McBSP Receive Channel Enable Register Partition H
XCERG 1D R/W 0x0000 McBSP Transmit Channel Enable Register Partition G
XCERH 1E R/W 0x0000 McBSP Transmit Channel Enable Register Partition H
FIFO MODE REGISTERS (applicable only in FIFO mode)
FIFO Data Registers(2)
DRR2 00 R 0x0000 McBSP Data Receive Register 2 – Top of receive FIFO
  • Read First FIFO pointers will not advance
DRR1 01 R 0x0000 McBSP Data Receive Register 1 – Top of receive FIFO
  • Read Second for FIFO pointers to advance
DXR2 02 W 0x0000 McBSP Data Transmit Register 2 – Top of transmit FIFO
  • Write First FIFO pointers will not advance
DXR1 03 W 0x0000 McBSP Data Transmit Register 1 – Top of transmit FIFO
  • Write Second for FIFO pointers to advance
FIFO Control Registers
MFFTX 20 R/W 0xA000 McBSP Transmit FIFO Register
MFFRX 21 R/W 0x201F McBSP Receive FIFO Register
MFFCT 22 R/W 0x0000 McBSP FIFO Control Register
MFFINT 23 R/W 0x0000 McBSP FIFO Interrupt Register
MFFST 24 R/W 0x0000 McBSP FIFO Status Register
(1) DRR2/DRR1 and DXR2/DXR1 share the same addresses of receive and transmit FIFO registers in FIFO mode.
(2) FIFO pointers advancing is based on order of access to DRR2/DRR1 and DXR2/DXR1 registers.
