Table 5-48 McBSP Switching Characteristics(1)(2)

NO. PARAMETER MIN MAX UNIT
M1 tc(CKRX) Cycle time, CLKR/X CLKR/X int 2P ns
M2 tw(CKRXH) Pulse duration, CLKR/X high CLKR/X int D – 5(3) D + 5(3) ns
M3 tw(CKRXL) Pulse duration, CLKR/X low CLKR/X int C – 5(3) C + 5(3) ns
M4 td(CKRH-FRV) Delay time, CLKR high to internal FSR valid CLKR int 0 4 ns
CLKR ext 3 27
M5 td(CKXH-FXV) Delay time, CLKX high to internal FSX valid CLKX int 0 4 ns
CLKX ext 3 27
M6 tdis(CKXH-DXHZ) Disable time, CLKX high to DX high impedance following last data bit CLKX int 8 ns
CLKX ext 14
M7 td(CKXH-DXV) Delay time, CLKX high to DX valid.
This applies to all bits except the first bit transmitted.		 CLKX int 9 ns
CLKX ext 28
Delay time, CLKX high to DX valid.

Only applies to first bit transmitted when in Data Delay 1 or 2 (XDATDLY = 01b or 10b) modes.		 DXENA = 0 CLKX int 8
CLKX ext 14
DXENA = 1 CLKX int P + 8
CLKX ext P + 14
M8 ten(CKXH-DX) Enable time, CLKX high to DX driven.

Only applies to first bit transmitted when in Data Delay 1 or 2 (XDATDLY = 01b or 10b) modes.		 DXENA = 0 CLKX int 0 ns
CLKX ext 6
DXENA = 1 CLKX int P
CLKX ext P + 6
M9 td(FXH-DXV) Delay time, FSX high to DX valid.

Only applies to first bit transmitted when in Data Delay 0 (XDATDLY = 00b) mode.		 DXENA = 0 FSX int 8 ns
FSX ext 14
DXENA = 1 FSX int P + 8
FSX ext P + 14
M10 ten(FXH-DX) Enable time, FSX high to DX driven.

Only applies to first bit transmitted when in Data Delay 0 (XDATDLY = 00b) mode.		 DXENA = 0 FSX int 0 ns
FSX ext 6
DXENA = 1 FSX int P
FSX ext P + 6
(1) Polarity bits CLKRP = CLKXP = FSRP = FSXP = 0. If the polarity of any of the signals is inverted, then the timing references of that signal are also inverted.
(2) 2P = 1/CLKG in ns.
(3) C = CLKRX low pulse width = P
D = CLKRX high pulse width = P

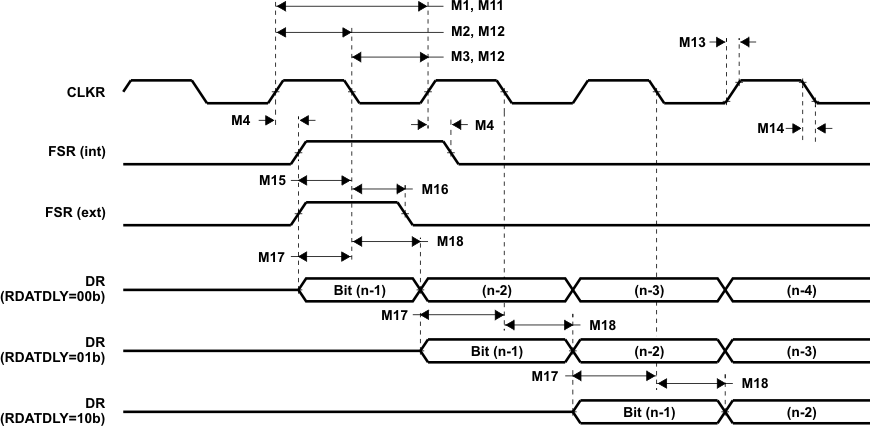

TMS320F2810 TMS320F2811 TMS320F2812 td_mcbsprec_prs174.gifFigure 5-39 McBSP Receive Timing
TMS320F2810 TMS320F2811 TMS320F2812 td_mcbsptran_prs174.gifFigure 5-40 McBSP Transmit Timing
