6.4.3 Reset Electrical Data Timings

Table 6-1 assumes testing over the recommended operating conditions.

Table 6-1 Reset Timing Requirements(1)

NO. MIN MAX UNIT
1 tw(RSTL) Pulse width, RESET/TRST low 100 ns
2 tsu(BPV-RSTH) Setup time, boot pins valid before RESET/TRST high 20 ns
3 th(RSTH-BPV) Hold time, boot pins valid after RESET/TRST high 20 ns
(1) For power-on reset (POR), the reset timings in this table refer to RESET and TRST together. For warm reset, the reset timings in this table refer to RESET only (TRST is held high).
TMS320C6743 td_reset_prs565.gifFigure 6-4 Power-On Reset (RESET and TRST active) Timing

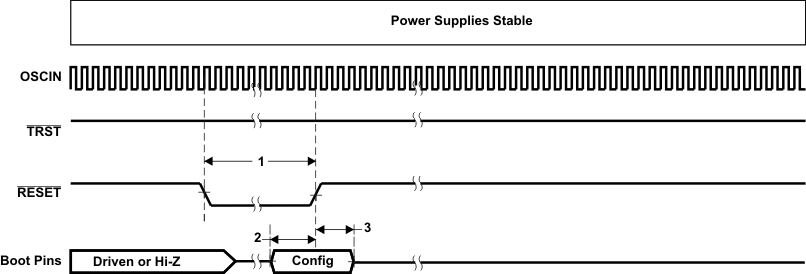

TMS320C6743 td_reset2_prs565.gifFigure 6-5 Warm Reset (RESET active, TRST high) Timing
