Crystal Oscillator or External Clock Input

The device includes two choices to provide an external clock input, which is fed to the on-chip PLL to generate high-frequency system clocks. These options are illustrated in Figure 6-6 and Figure 6-7. For input clock frequencies between 12 and 20 MHz, a crystal with 80 ohm max ESR is recommended. For input clock frequencies between 20 and 30 MHz, a crystal with 60 ohm max ESR is recommended. Typical load capacitance values are 10-20 pF, where the load capacitance is the series combination of C1 and C2.

The CLKMODE bit in the PLLCTL register must be 0 to use the on-chip oscillator. If CLKMODE is set to 1, the internal oscillator is disabled.

  • Figure 6-6 illustrates the option that uses on-chip 1.2V oscillator with external crystal circuit.
  • Figure 6-7 illustrates the option that uses an external 1.2V clock input.
TMS320C6743 onchip_1-2v_osc_prs483.gifFigure 6-6 On-Chip 1.2V Oscillator

Table 6-2 Oscillator Timing Requirements

NO PARAMETER MIN MAX UNIT
fosc Oscillator frequency range (OSCIN/OSCOUT) 12 30 MHz

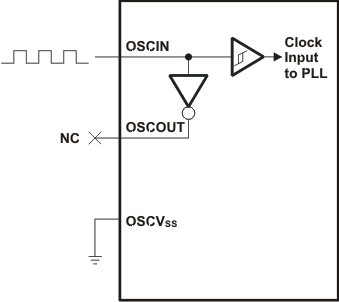

TMS320C6743 extended_1-2v_clock_prs483.gifFigure 6-7 External 1.2V Clock Source

Table 6-3 OSCIN Timing Requirements for Externally Driven Clock

NO MIN MAX UNIT
fOSCIN OSCIN frequency range (OSCIN) 12 50 MHz
tc(OSCIN) Cycle time, external clock driven on OSCIN 20 ns
tw(OSCINH) Pulse width high, external clock on OSCIN 0.4 tc(OSCIN) ns
tw(OSCINL) Pulse width low, external clock on OSCIN 0.4 tc(OSCIN) ns
tt(OSCIN) Transition time, OSCIN 0.25P or 10(1) ns
tj(OSCIN) Period jitter, OSCIN 0.02P ns
Whichever is smaller. P = the period of the applied signal. Maintaining transition times as fast as possible is recommended to improve noise immunity on input signals.
