7.9 Typical Characteristics: V_S = 5 V

Test conditions unless otherwise noted: V_S+ = +5 V, V_S– = 0 V, V_OUT = 2 Vpp, R_F = 0 Ω, R_L = 2 kΩ, G = 1 V/V, input and output referenced to mid-supply. T_A = 25°C

Figure 7-27 Small-Signal Frequency Response

Figure 7-29 Noninverting Pulse Response

Figure 7-31 Slew Rate vs Output Voltage Step

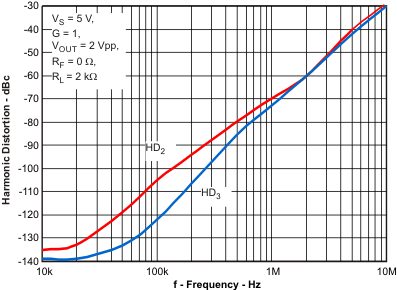

Figure 7-33 Harmonic Distortion vs Frequency

Figure 7-35 Harmonic Distortion vs Output Voltage

Figure 7-37 Output Voltage Swing vs Load Resistance

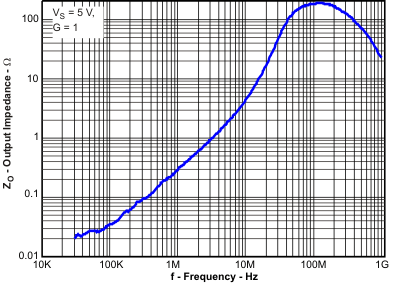

Figure 7-39 Output Impedance vs Frequency

Figure 7-41 Series Output Resistor vs Capacitive Load

Figure 7-43 Open-Loop Gain vs Frequency

Figure 7-45 Crosstalk vs Frequency

Figure 7-47 Input Offset Voltage

Figure 7-49 Input Offset Voltage Drift

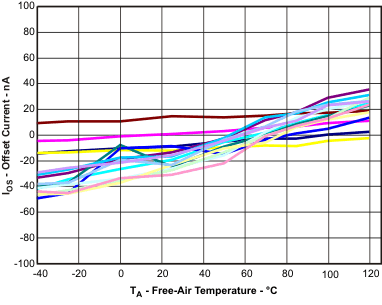

Figure 7-51 Input Offset Current vs Free-Air Temperature

Figure 7-28 Large-Signal Frequency Response

Figure 7-30 Inverting Pulse Response

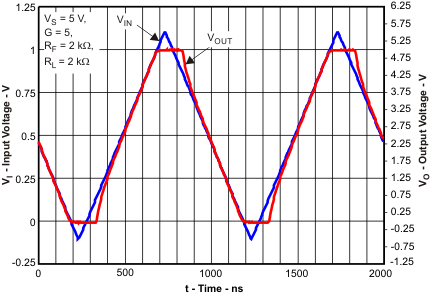

Figure 7-32 Output Overdrive Recovery

Figure 7-34 Harmonic Distortion vs Load Resistance

Figure 7-36 Harmonic Distortion vs Gain

Figure 7-38 Output Saturation Voltage vs Load Current

Figure 7-40 Frequency Response With Capacitive Load

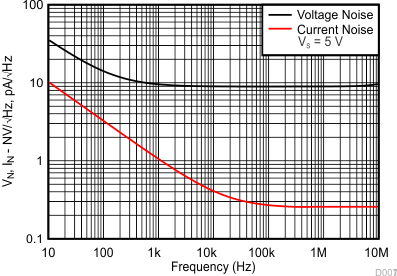

Figure 7-42 Input Referred Noise vs Frequency

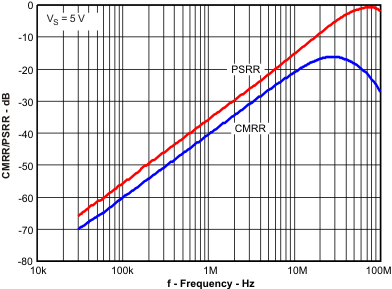

Figure 7-44 Common-Mode/Power Supply Rejection Ratios vs Frequency

Figure 7-46 Power Down Response

Figure 7-48 Input Offset Voltage vs Free-Air Temperature

Figure 7-50 Input Offset Current

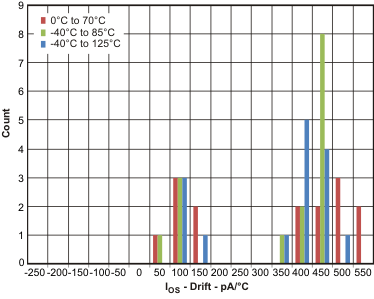

Figure 7-52 Input Offset Current Drift
