Multiphase in Star Configuration

Each LM5170 synchronizes to an external clock, and the clock signals should have appropriate phase delays among them for proper multiphase interleaving operation. The interleave angle between the two phases of each LM5170-Q1 can be programmed to 180° or 240° by the OPT pin.Table 8-1 summarizes the settings of the external clocks and the OPT pin state for multiphase configurations.

Table 8-1 Multiphase Configurations With Individual External Clock
NUMBER OF PHASESPHASE SHIFT BETWEEN EXTERNAL CLOCKS FOR MULTIPHASE INTERLEAVINGOPT LOGIC STATE(1)CH-2 PHASE LAGGING VS CH-1NUMBER OF LM5170-Q1 CONTROLLERS NEEDEDNUMBER OF EXTERNAL CLOCKS NEEDED
2180°1180°11 or 0
3120°0240°22
490°1180°22
660° or 120°1180°33
845°1180°44
2xN(180° / N)1180°NN
OPT State = 0 when the pin connects to AGND, and 1 when the pin voltage is > 2.5 V.

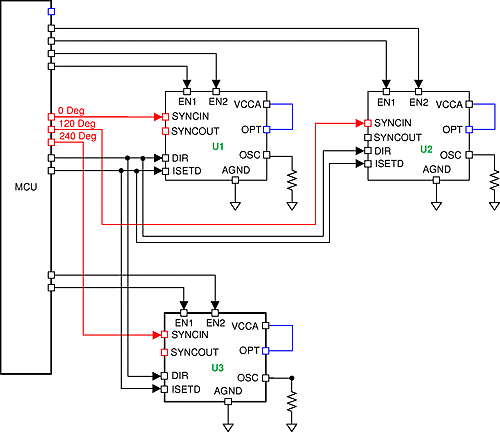

GUID-89540979-53BC-4411-8681-0E873141737C-low.gifFigure 8-20 Example of Six Phase Star Configuration
