8.4.1.3 Configuration of 6 or 8 Phases in Master-Slave Daisy-Chain Configurations

To configure 6 or 8 phases, it requires two daisy chains shown in Figure 8-22 through Figure 8-25. Note that two phase-shifted external clock signals are required for proper interleaving operation. When external clock signals are not available, the 6-phase can be configured in 120° interleaving, and 8-phase in 90° interleaving by daisy chain (refer to Figure 8-23 and Figure 8-25), in which two phases of the system are synchronized in phase.

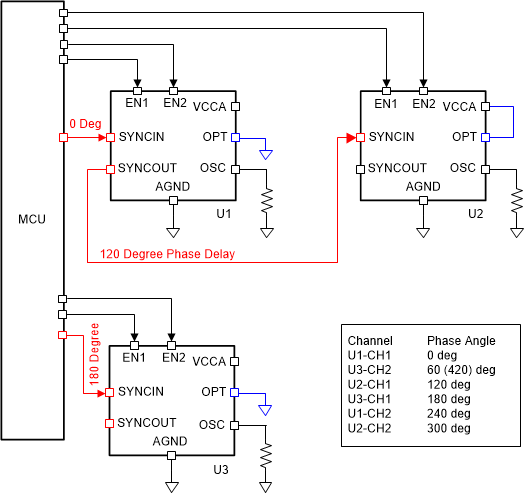

GUID-033FADBE-E9D2-485F-A1A5-54ED79A5A160-low.gifFigure 8-22 Six Phases 60° Interleaving Configuration

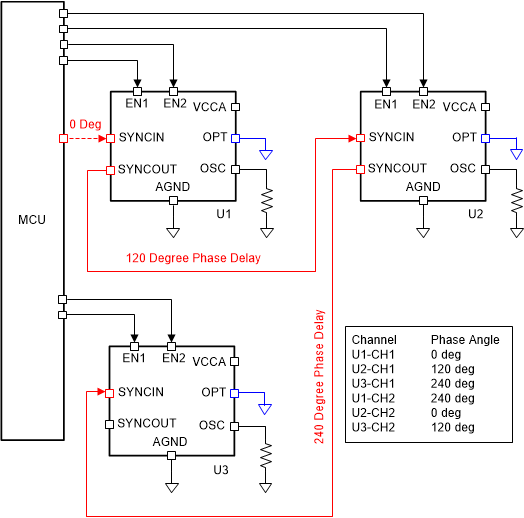

GUID-A6BC4922-B5D1-4E25-A989-1CDE7DC16833-low.gifFigure 8-23 Six Phases 120° Interleaving Configuration
GUID-9D7DA331-857B-453D-B636-03EF12BE83EF-low.gifFigure 8-24 Eight Phases 45° Interleaving Configuration
GUID-D87A4B01-C38F-4D80-8778-6797677C605C-low.gifFigure 8-25 Eight Phases 90° Interleaving Configuration
