Channel Current Monitor (IOUT1, IOUT2)

The LM5170-Q1 monitors the real time inductor current in each channel at the IOUT1 and IOUT2 pins. The channel current is converted to a small current source scaled by the factors seen in Equation 11 and Equation 12:

Equation 11. GUID-2FBBA6AB-5E65-4C44-9D58-8B359A3F22F4-low.gif
Equation 12. GUID-C4664DCA-4373-48A2-ACE5-9D3231EB43D3-low.gif

where

  • VCS1 and VCS2 are the real time current sense voltage of CH-1 and CH-2, respectively
  • the 25 µA is a DC offset current superimposed on to the IOUT signals (refer to Figure 8-5).

The DC offset current is introduced to raise the no-load signal above the possible ground noise floor. Because the monitor signal is in the form of current, an accurate reading can be obtained across a termination resistor even if the resistor is located far from the LM5170-Q1 but close to the MCU, thus rejecting potential ground differences between the LM5170-Q1 and the MCU. Figure 8-6 shows a typical channel current monitor through a 9.09-KΩ termination resistor and a 10-nF to 100-nF ceramic capacitor in parallel. The RC network converts the current monitor signal into a DC voltage proportional to the channel DC current. For example, when the current sense voltage DC component is 50 mVdc, namely VCS_dc = 50 mV, the termination RC network will produce a DC voltage of 2.5 V. Note that the maximum IOUT pin voltage is internally clamped to approximately 4 V.

GUID-4BB0CB08-C8C0-4853-A7DC-D0276E2BEF16-low.gifFigure 8-5 Channel Monitor Current Source vs Current Sense Voltage

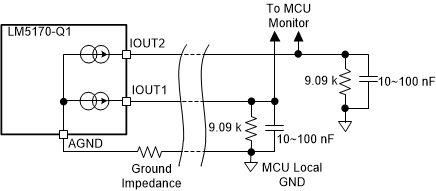

GUID-FAE489AB-F48F-4E0E-85DD-B8A096B55A74-low.gifFigure 8-6 Channel Current Monitor
