Configuration of 2, 3, or 4 Phases in Master-Slave Daisy-Chain Configurations

This can be used to achieve 1, 2, 3, or 4 phases without using an external clock. Table 8-2 summarizes the OPT settings for the daisy-chain multiphase configurations. Figure 8-21 shows the daisy-chain connections for multiphase configurations.

Table 8-2 Multiphase Configurations With Built-In Daisy-Chain Master-Slave Configuration
NUMBER OF PHASESOPT LOGIC STATE(1)CH-2 PHASE LAGGING VS CH-1SYNCOUT PHASE LAGGING VS CH-1NUMBER OF LM5170-Q1 CONTROLLERS NEEDEDNUMBER OF EXTERNAL CLOCKS NEEDED
21180°90°10 or 1
30240°120°20 or 1
41180°90°20 or 1
OPT State = 0 when the pin connects to AGND, and 1 when the pin voltage is > 2.5 V.

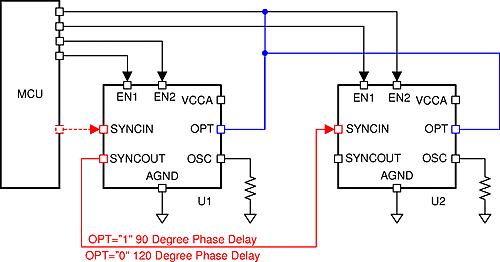

GUID-41EDA77F-0CC1-4F91-9DE4-5143BE56FD0D-low.gifFigure 8-21 Three or Four Phases Interchangeable Configuration
