6.1 VQFN (RVJ) 56-Pin Package and Pin Functions

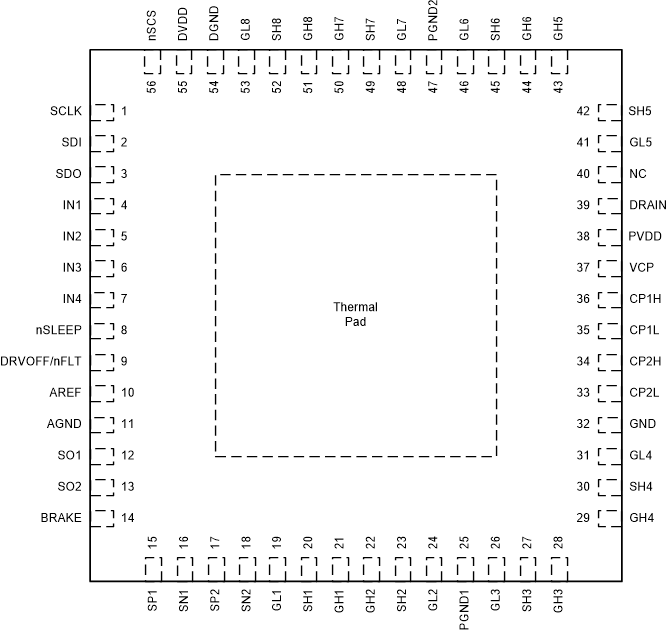

GUID-3B30DBF2-43A5-464F-8680-6F277833BB8B-low.gif Figure 6-1 DRV8718S-Q1 VQFN (RVJ) 56-Pin Package Top View

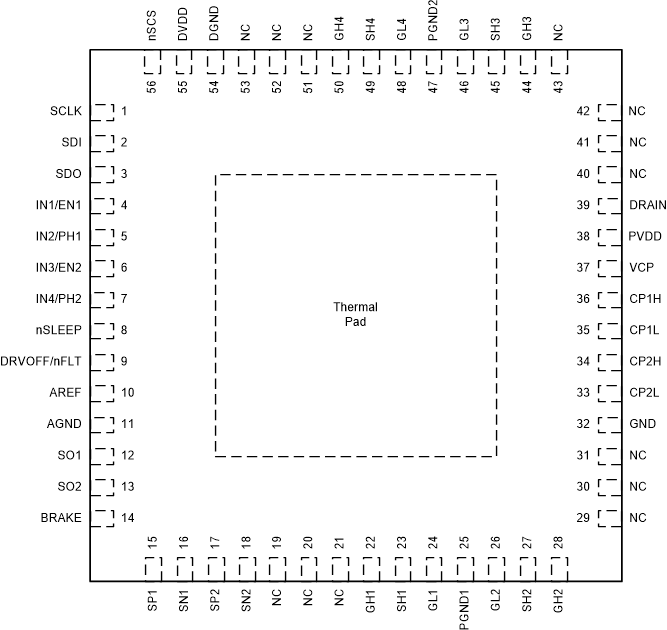

GUID-A9A22B4D-0852-4AA0-A4F0-662A37B7406F-low.gif Figure 6-2 DRV8714S-Q1 VQFN (RVJ) 56-Pin Package Top View
Table 6-1 VQFN (RVJ) 56-Pin Package Pin Functions
PIN I/O TYPE DESCRIPTION
NO. NAME
DRV8718S-Q1 DRV8714S-Q1
1 SCLK I Digital Serial clock input. Serial data is shifted out and captured on the corresponding rising and falling edge on this pin. Internal pulldown resistor.
2 SDI I Digital Serial data input. Data is captured on the falling edge of the SCLK pin. Internal pulldown resistor.
3 SDO O Digital Serial data output. Data is shifted out on the rising edge of the SCLK pin. Push-pull output.
4 IN1 IN1/EN1 I Digital Half-bridge and H-bridge control input. See Section 8.3.3. Internal pulldown.
5 IN2 IN2/PH1 I Digital
6 IN3 IN3/EN2 I Digital
7 IN4 IN4/PH2 I Digital
8 nSLEEP I Digital Device enable pin. Logic low to shutdown the device and enter sleep mode. Internal pulldown resistor.
9 DRVOFF/nFLT I/O Digital Multi-function pin for either driver shutdown input or fault indicator output. See Section 8.3.8. Internal pulldown resistor.
10 AREF I Power External voltage reference and power supply for current sense amplifiers. Recommended to connect a 0.1-µF, 6.3-V ceramic capacitor between the AREF and AGND pins.
11 AGND I/O Power Device ground. Connect to system ground.
12 SO1 O Analog Shunt amplifier output.
13 SO2 O Analog Shunt amplifier output.
14 BRAKE I Digital Powered off braking pin. Logic high to enable low-side gate drivers while in low-power sleep mode. See Section 8.3.8.2. Internal pulldown resistor.
15 SP1 I Analog Amplifier positive input. Connect to positive terminal of the shunt resistor.
16 SN1 I Analog Amplifier negative input. Connect to negative terminal of the shunt resistor.
17 SP2 I Analog Amplifier positive input. Connect to positive terminal of the shunt resistor.
18 SN2 I Analog Amplifier negative input. Connect to negative terminal of the shunt resistor.
19 GL1 NC O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
20 SH1 NC I Analog High-side source sense input. Connect to the high-side MOSFET source.
21 GH1 NC O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
22 GH2 GH1 O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
23 SH2 SH1 I Analog High-side source sense input. Connect to the high-side MOSFET source.
24 GL2 GL1 O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
25 PGND1 I Analog Low-side MOSFET gate drive 1-4 sense and power return. Connect to system ground close to the device and half-bridge 1-4.
26 GL3 GL2 O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
27 SH3 SH2 I Analog High-side source sense input. Connect to the high-side MOSFET source.
28 GH3 GH2 O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
29 GH4 NC O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
30 SH4 NC I Analog High-side source sense input. Connect to the high-side MOSFET source.
31 GL4 NC O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
32 GND I/O Ground Device ground. Connect to system ground.
33 CP2L I/O Power Charge pump switching node. Connect a 100-nF, PVDD-rated ceramic capacitor between the CP2H and CP2L pins.
34 CP2H I/O Power
35 CP1L I/O Power Charge pump switching node. Connect a 100-nF, PVDD-rated ceramic capacitor between the CP1H and CP1L pins.
36 CP1H I/O Power
37 VCP I/O Power Charge pump output. Connect a 1-µF, 16-V ceramic capacitor between the VCP and PVDD pins.
38 PVDD I Power Device driver power supply input. Connect to the bridge power supply. Connect a 0.1-µF, PVDD-rated ceramic capacitor and local bulk capacitance greater than or equal to 10-µF between PVDD and GND pins.
39 DRAIN I Analog Bridge MOSFET drain voltage sense pin. Connect to common point of the high-side MOSFET drains.
40 NC — — No connection.
41 GL5 NC O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
42 SH5 NC I Analog High-side source sense input. Connect to the high-side MOSFET source.
43 GH5 NC O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
44 GH6 GH3 O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
45 SH6 SH3 I Analog High-side source sense input. Connect to the high-side MOSFET source.
46 GL6 GL3 O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
47 PGND2 I Analog Low-side MOSFET gate drive 5-8 sense and power return. Connect to system ground close to the device and half-bridge 5-8.
48 GL7 GL4 O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
49 SH7 SH4 I Analog High-side source sense input. Connect to the high-side MOSFET source.
50 GH7 GH4 O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
51 GH8 NC O Analog High-side gate driver output. Connect to the gate of the high-side MOSFET.
52 SH8 NC I Analog High-side source sense input. Connect to the high-side MOSFET source.
53 GL8 NC O Analog Low-side gate driver output. Connect to the gate of the low-side MOSFET.
54 DGND I/O Ground Device ground. Connect to system ground.
55 DVDD I Power Device logic and digital output power supply input. Recommended to connect a 1.0-µF, 6.3-V ceramic capacitor between the DVDD and GND pins.
56 nSCS I Digital Serial chip select. A logic low on this pin enables serial interface communication. Internal pullup resistor.
Note: The DRV8718-Q1 56-Pin VQFN (RVJ) and DRV8714-Q1 56-Pin VQFN (RVJ) packages are drop in pin-to-pin compatible. Please note that the locations of half-bridges 1,2,3 and 4 will be shifted for the DRV8714-Q1 to help with PCB routing.
