3 说明

DRV871x-Q1 系列器件是适用于驱动多个电机或负载的高度集成多通道栅极驱动器。该器件集成了 4 个 (DRV8714-Q1) 或 8 个 (DRV8718-Q1) 半桥栅极驱动器、驱动器电源、电流分流放大器和保护监测器，可降低系统的总体复杂性和成本并减小尺寸。

智能栅极驱动架构可管理死区时间，从而防止击穿并控制压摆率，降低电磁干扰 (EMI) 并优化传播延迟以实现出色性能。

提供的输入模式可实现独立的半桥或 H 桥控制。可在不同驱动器之间多路复用四个 PWM 输入，并提供 SPI 控制。

宽共模分流放大器具有内嵌式电流检测功能，即使在再循环期间也可持续测量电机电流。如果不需要进行内嵌式检测，放大器可用于低侧或高侧检测配置。

该器件提供了一系列保护功能，可确保系统稳定运行。此类功能包括欠压和过压监测、适用于外部 MOSFET 的 VDS 过流和 VGS 栅极故障监测、离线开路负载和短路诊断，以及内部热警告和热关断保护功能。

器件信息(1)
器件型号 封装 封装尺寸（标称值）
DRV8714-Q1 VQFN (40) 6.00mm x 6.00mm
HTQFP (48) 7.00mm x 7.00mm
VQFN (56) 8.00mm x 8.00mm
DRV8718-Q1 VQFN (56) 8.00mm x 8.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

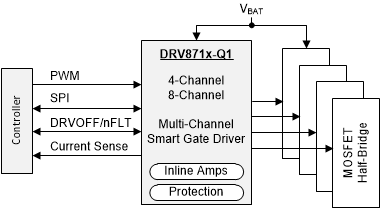

GUID-0B3A9998-5689-4E6E-B0BF-7E7129E0E59E-low.gif简单方框图
