6.15 JTAG Interface: I/O Boundary Scan Application Switching Characteristics
over operating free-air temperature range, CL(min timing) = 5 pF, CL(max timing) = 85 pF (unless otherwise noted)
| PARAMETER | FROM INPUT | TO OUTPUT | MIN | MAX | UNIT | |
|---|---|---|---|---|---|---|
| tpd | Output Propagation, Clock to Q | TCK↓ | TDO1 | 3 | 12 | ns |

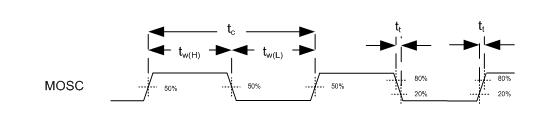

Figure 6-1 System Oscillators

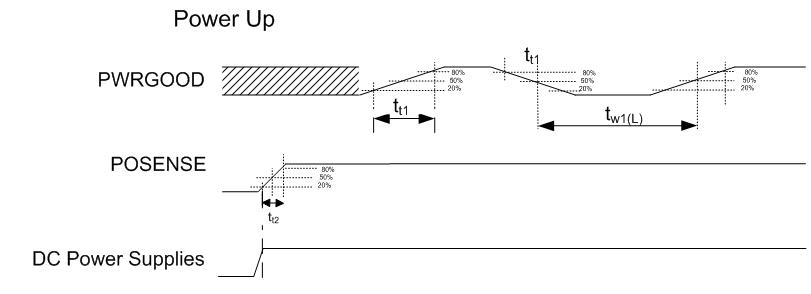

Figure 6-2 Power Up
Figure 6-3 Power Down

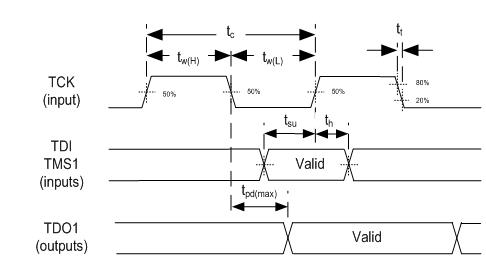

Figure 6-4 I/O Boundary Scan
Figure 6-5 Programmable Output Clocks
Figure 6-6 Port1, Port2, and Port3 Input Interface

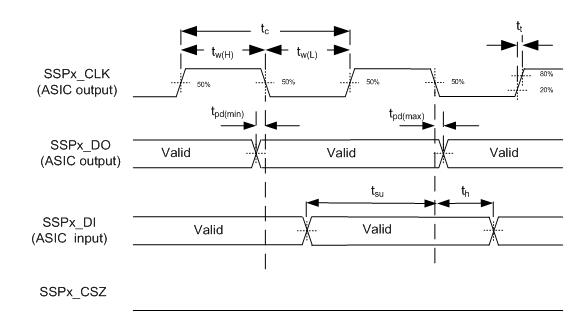

Figure 6-7 Synchronous Serial Port
Interface—Primary
Figure 6-8 Synchronous Serial Port
Interface—Secondary

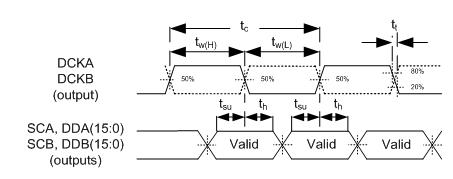

Figure 6-9 DMD LVDS Interface
