ZHCS065G March 2011 – January 2024 DAC3482
PRODUCTION DATA
- 1
- 1 特性
- 2 应用
- 3 说明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Recommended Operating Conditions
- 5.4 Thermal Information
- 5.5 Electrical Characteristics – DC Specifications
- 5.6 Electrical Characteristics – Digital Specifications
- 5.7 Electrical Characteristics – AC Specifications
- 5.8 Electrical Characteristics - Phase-Locked Loop Specifications
- 5.9 Timing Requirements - Digital Specifications
- 5.10 Switching Characteristics – AC Specifications
- 5.11 Typical Characteristics
-
6 Detailed Description
- 6.1 Overview
- 6.2 Functional Block Diagram
- 6.3
Feature Description
- 6.3.1 Serial Interface
- 6.3.2 Data Interface
- 6.3.3 Input FIFO
- 6.3.4 FIFO Modes of Operation
- 6.3.5 Clocking Modes
- 6.3.6 FIR Filters
- 6.3.7 Complex Signal Mixer
- 6.3.8 Quadrature Modulation Correction (QMC)
- 6.3.9 Temperature Sensor
- 6.3.10 Data Pattern Checker
- 6.3.11 Parity Check Test
- 6.3.12 DAC3482 Alarm Monitoring
- 6.3.13 LVPECL Inputs
- 6.3.14 LVDS Inputs
- 6.3.15 Unused LVDS Port Termination
- 6.3.16 CMOS Digital Inputs
- 6.3.17 Reference Operation
- 6.3.18 DAC Transfer Function
- 6.3.19 Analog Current Outputs
- 6.4 Device Functional Modes
- 6.5 Programming
- 6.6
Register Map
- 6.6.1
Register Descriptions
- 6.6.1.1 Register Name: config0 – Address: 0x00, Default: 0x049C
- 6.6.1.2 Register Name: config1 – Address: 0x01, Default: 0x050E
- 6.6.1.3 Register Name: config2 – Address: 0x02, Default: 0x7000
- 6.6.1.4 Register Name: config3 – Address: 0x03, Default: 0xF000
- 6.6.1.5 Register Name: config4 – Address: 0x04, Default: No RESET Value (WRITE TO CLEAR)
- 6.6.1.6 Register Name: config5 – Address: 0x05, Default: Setup and Power-Up Conditions Dependent (WRITE TO CLEAR)
- 6.6.1.7 Register Name: config6 – Address: 0x06, Default: No RESET Value (READ ONLY)
- 6.6.1.8 Register Name: config7 – Address: 0x07, Default: 0xFFFF
- 6.6.1.9 Register Name: config8 – Address: 0x08, Default: 0x0000 (CAUSES AUTO-SYNC)
- 6.6.1.10 Register Name: config9 – Address: 0x09, Default: 0x8000
- 6.6.1.11 Register Name: config10 – Address: 0x0A, Default: 0x0000
- 6.6.1.12 Register Name: config11 – Address: 0x0B, Default: 0x0000
- 6.6.1.13 Register Name: config12 – Address: 0x0C, Default: 0x0400
- 6.6.1.14 Register Name: config13 – Address: 0x0D, Default: 0x0400
- 6.6.1.15 Register Name: config14 – Address: 0x0E, Default: 0x0400
- 6.6.1.16 Register Name: config15 – Address: 0x0F, Default: 0x0400
- 6.6.1.17 Register Name: config16 – Address: 0x10, Default: 0x0000 (CAUSES AUTO-SYNC)
- 6.6.1.18 Register Name: config17 – Address: 0x11, Default: 0x0000
- 6.6.1.19 Register Name: config18 – Address: 0x12, Default: 0x0000 (CAUSES AUTO-SYNC)
- 6.6.1.20 Register Name: config19 – Address: 0x13, Default: 0x0000
- 6.6.1.21 Register Name: config20 – Address: 0x14, Default: 0x0000
- 6.6.1.22 Register Name: config21 – Address: 0x15, Default: 0x0000
- 6.6.1.23 Register name: config22 – Address: 0x16, Default: 0x0000
- 6.6.1.24 Register Name: config23 – Address: 0x17, Default: 0x0000
- 6.6.1.25 Register Name: config24 – Address: 0x18, Default: NA
- 6.6.1.26 Register Name: config25 – Address: 0x19, Default: 0x0440
- 6.6.1.27 Register Name: config26 – Address: 0x1A, Default: 0x0020
- 6.6.1.28 Register Name: config27 – Address: 0x1B, Default: 0x0000
- 6.6.1.29 Register Name: config28 – Address: 0x1C, Default: 0x0000
- 6.6.1.30 Register Name: config29 – Address: 0x1D, Default: 0x0000
- 6.6.1.31 Register Name: config30 – Address: 0x1E, Default: 0x1111
- 6.6.1.32 Register Name: config31 – Address: 0x1F, Default: 0x1140
- 6.6.1.33 Register Name: config32 – Address: 0x20, Default: 0x2400
- 6.6.1.34 Register Name: config33 – Address: 0x21, Default: 0x0000
- 6.6.1.35 Register Name: config34 – Address: 0x22, Default: 0x1B1B
- 6.6.1.36 Register Name: config35 – Address: 0x23, Default: 0xFFFF
- 6.6.1.37 Register Name: config36 – Address: 0x24, Default: 0x0000
- 6.6.1.38 Register Name: config37 – Address: 0x25, Default: 0x7A7A
- 6.6.1.39 Register Name: config38 – Address: 0x26, Default: 0xB6B6
- 6.6.1.40 Register Name: config39 – Address: 0x27, Default: 0xEAEA
- 6.6.1.41 Register Name: config40 – Address: 0x28, Default: 0x4545
- 6.6.1.42 Register Name: config41 – Address: 0x29, Default: 0x1A1A
- 6.6.1.43 Register Name: config42 – Address: 0x2A, Default: 0x1616
- 6.6.1.44 Register Name: config43 – Address: 0x2B, Default: 0xAAAA
- 6.6.1.45 Register Name: config44 – Address: 0x2C, Default: 0xC6C6
- 6.6.1.46 Register Name: config45 – Address: 0x2D, Default: 0x0004
- 6.6.1.47 Register Name: config46 – Address: 0x2E, Default: 0x0000
- 6.6.1.48 Register Name: config47 – Address: 0x2F, Default: 0x0000
- 6.6.1.49 Register Name: config48 – Address: 0x30, Default: 0x0000
- 6.6.1.50 Register Name: version– Address: 0x7F, Default: 0x540C (READ ONLY)
- 6.6.1
Register Descriptions
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封装选项
机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
- RKD|88
订购信息
5.11 Typical Characteristics
All plots are at 25°C, nominal supply voltage, fDAC = 1250MSPS, 4x interpolation, NCO enabled, Mixer Gain disabled, QMC enabled with gain set at 1446 for both I/Q channels, 0dBFS digital input, 20mA full-scale output current with 4:1 transformer (unless otherwise noted)
Figure 5-1 Integral Nonlinearity
Figure 5-3 SFDR vs Output Frequency Over Input Scale

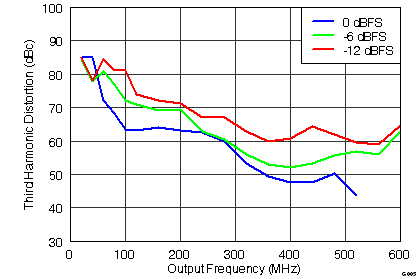

Figure 5-5 Third Harmonic Distortion vs Output Frequency Over Input Scale
Figure 5-7 SFDR vs Output Frequency Over fDAC

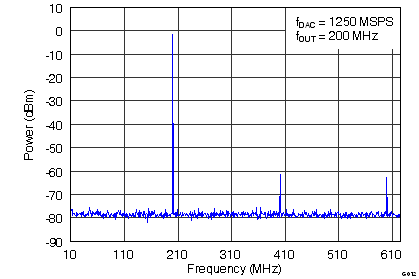

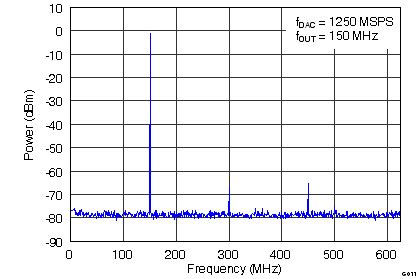

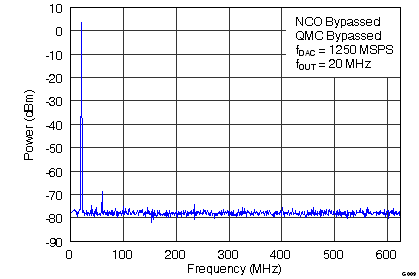

Figure 5-9 Single Tone Spectral Plot

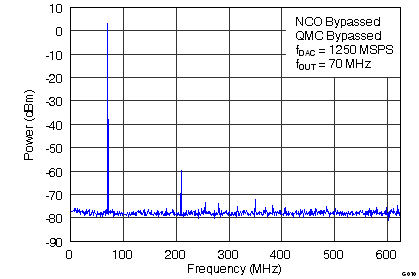

Figure 5-11 Single Tone Spectral Plot
Figure 5-13 Single Tone Spectral Plot
Figure 5-15 IMD3 vs Output Frequency Over Interpolation
Figure 5-17 IMD3 vs Output Frequency Over IOUTFS

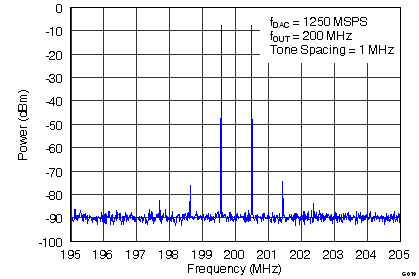

Figure 5-19 Two Tone Spectral Plot
Figure 5-21 NSD vs Output Frequency Over Interpolation
Figure 5-23 NSD vs Output Frequency Over IOUTFS

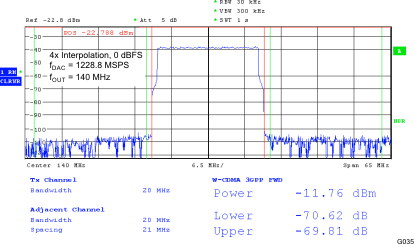

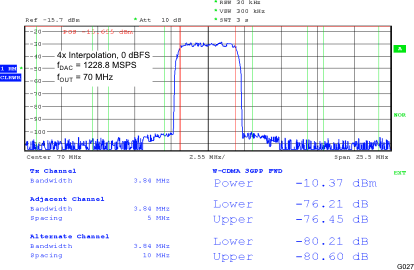

Figure 5-25 Single Carrier WCDMA ACLR (Adjacent) vs Output Frequency Over Clocking Options

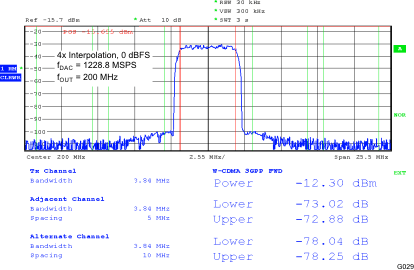

Figure 5-27 Single Carrier W-CDMA Test Model 1

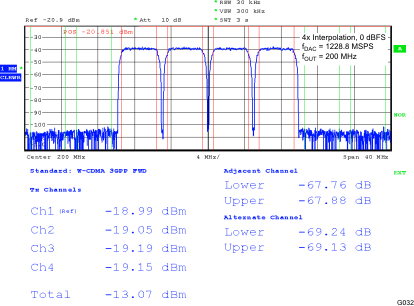

Figure 5-31 Four Carrier W-CDMA Test Model 1

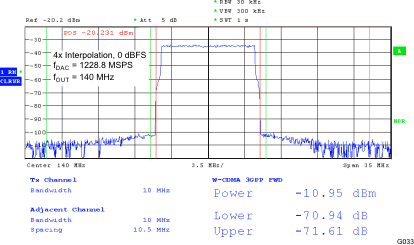

Figure 5-33 10 MHz Single Carrier LTE Test Model 3.1
Figure 5-35 20 MHz Single Carrier LTE Test Model 3.1

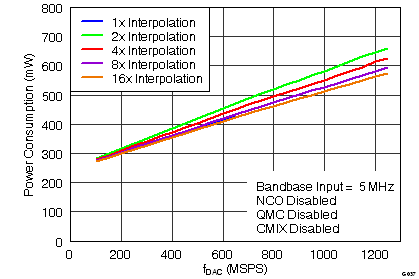

Figure 5-37 Power Consumption vs fDAC Over Interpolation
Figure 5-39 Power Consumption vs fDAC Over Digital Processing Functions

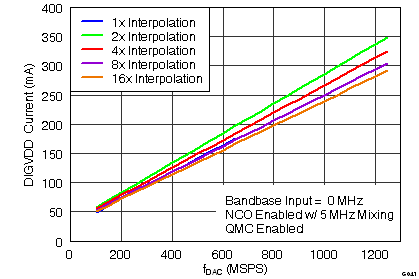

Figure 5-41 DIGVDD Current vs fDAC Over Interpolation
Figure 5-43 DACVDD Current vs fDAC
Figure 5-45 AVDD Current vs fDAC
Figure 5-47 SFDR vs Output Frequency

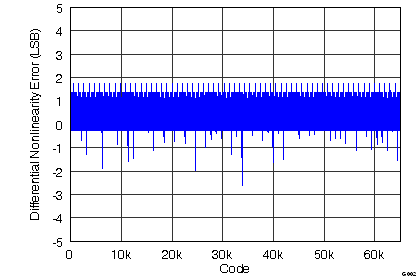

Figure 5-2 Differential Nonlinearity

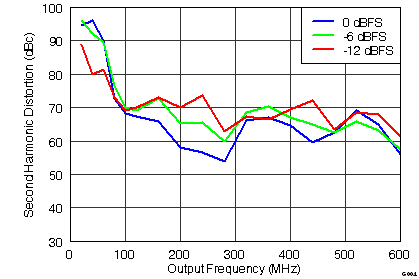

Figure 5-4 Second Harmonic Distortion vs Output Frequency Over Input Scale

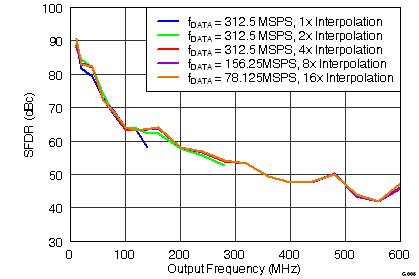

Figure 5-6 SFDR vs Output Frequency Over Interpolation
Figure 5-8 SFDR vs Output Frequency Over IOUTFS
Figure 5-10 Single Tone Spectral Plot
Figure 5-12 Single Tone Spectral Plot

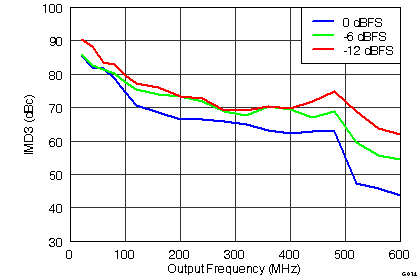

Figure 5-14 IMD3 vs Output Frequency Over Input Scale

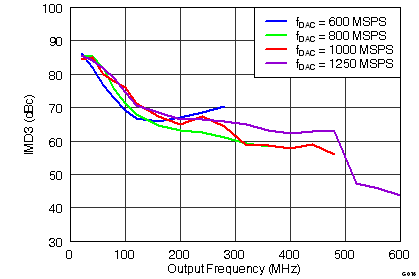

Figure 5-16 IMD3 vs Output Frequency Over fDAC
Figure 5-18 Two Tone Spectral Plot

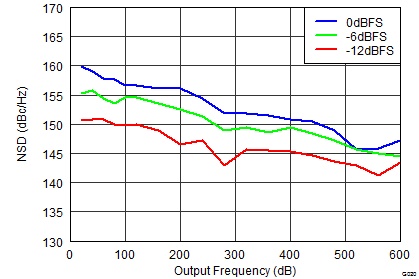

Figure 5-20 NSD vs Output Frequency Over Input Scale
Figure 5-22 NSD vs Output Frequency Over fDAC

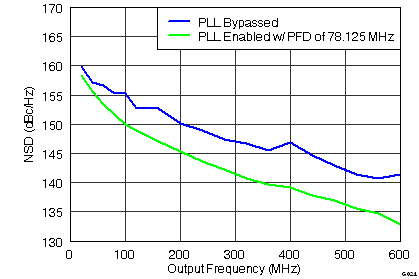

Figure 5-24 NSD vs Output Frequency Over Clocking Options
Figure 5-26 Single Carrier WCDMA ACLR (Alternate) vs Output Frequency Over Clocking Options

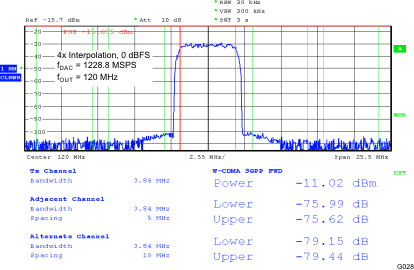

Figure 5-28 Single Carrier W-CDMA Test Model 1
Figure 5-30 Four Carrier W-CDMA Test Model 1
Figure 5-32 Four Carrier W-CDMA Test Model 1
Figure 5-34 10 MHz Single Carrier LTE Test Model 3.1
Figure 5-36 20 MHz Single Carrier LTE Test Model 3.1
Figure 5-38 Power Consumption vs fDAC Over Interpolation
Figure 5-40 DIGVDD Current vs fDAC Over Interpolation

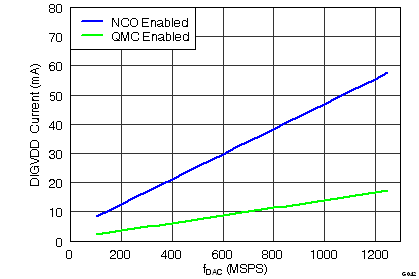

Figure 5-42 DIGVDD Current vs fDAC Over Digital Processing Functions
Figure 5-44 CLKVDD Current vs fDAC

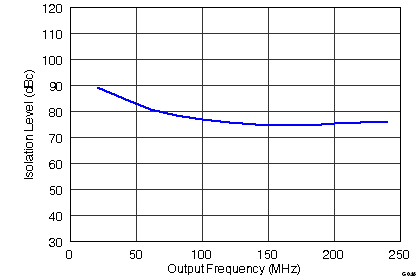

Figure 5-46 Isolation Level vs Output Frequency
Figure 5-48 IMD3 vs Output Frequency
