8.3.6.2 Overview of the Fault/Protection Schemes

The LP8861-Q1 fault detection behavior is described in Table 3. Detected faults (excluding LED faults) cause the device to enter FAULT_RECOVERY state. In FAULT_RECOVERY the boost and LED outputs of LP8861-Q1 are disabled, power-line FET is turned off, and the FAULT pin is pulled low. Device recovers automatically and enters normal operating mode (ACTIVE) after a recovery time of 100 ms if the fault condition has disappeared. When recovery is successful, the FAULT pin is released.

In case a LED fault is detected, device continues normal operation and only the faulty string is disabled. Fault is indicated via FAULT pin which can be released by toggling VDDIO/EN pin low for a short period of 2…20 µs. LEDs are turned off for this period but device stays in ACTIVE mode. If VDDIO/EN is low longer, device goes to STANDBY and restarts when EN goes high again.

Table 3. Fault/Protection Schemes

FAULT/
PROTECTION 		FAULT NAME THRESHOLD CONNECTED TO
FAULT PIN 		FAULT_
RECOVERY
STATE		 ACTION
VIN overvoltage protection VIN_OVP 1. VIN > 42 V
2. VBOOST > VSET_BOOST + (6...10) V
VSET_BOOST is voltage value defined by logic during adaptation 		Yes Yes 1. Overvoltage is monitored from the beginning of soft start. Fault is detected if the duration of overvoltage condition is 100 µs minimum.
2. Overvoltage is monitored from the beginning of normal operation (ACTIVE mode). Fault is detected if overvoltage condition duration is 560 ms minimum (tfilter). After the first fault detection filter time is reduced to 50 ms for following recovery cycles. When device recovers and has been in ACTIVE mode for 160 ms, filter is increased back to 560 ms.
VIN undervoltage lockout VIN_UVLO Falling 3.9 V
Rising 4 V 		Yes Yes Detects undervoltage condition at VIN pin. Sensed from the beginning of soft start. Fault is detected if undervoltage condition duration is 100 µs minimum.
VIN overcurrent protection VIN_OCP 3 A (50-mΩ current sensor resistor) Yes Yes Detects overcurrent by measuring voltage of the SENSE resistor connected between VIN and VSENSE_N pins. Sensed from the beginning of soft start. Fault is detected if undervoltage condition duration is 10 µs minimum.
Open LED fault OPEN_LED LOW_COMP threshold Yes No Detected if one or more outputs are below threshold level, and boost adaptive control has reached maximum voltage. Open string(s) is removed from voltage control loop and PWM is disabled.
Fault pin is cleaned by toggling VDDIO/EN pin. If VDDIO/EN is low for a short period of 2…20 µs, LEDs are turned off for this period but device stays ACTIVE. If VDDIO/EN is low longer, device goes to STANDBY and restarts when EN goes high again.
Shorted LED fault SHORT_LED Shorted string detection level 6 V Yes No Detected if one or more outputs voltages are above shorted string detection level and at least one LED output voltage is within headroom window. Shorted string(s) are removed from the boost voltage control loop and outputs PWM(s) are disabled.
Fault pin is cleaned by toggling VDDIO/EN pin. If VDDIO/EN is low for a short period of 2…20 µs, LEDs are turned off for this period but device stays ACTIVE. If VDDIO/EN is low longer, device goes to STANDBY and restarts when EN goes high again.
Thermal protection TSD 165ºC
Thermal Shutdown Hysteresis 20ºC 		Yes Yes Thermal shutdown is monitored from the beginning of soft start. Die temperature must decrease by 20ºC for device to recover.
LP8861-Q1 boost_OVP_SNVSA50.gifFigure 16. VIN Overvoltage Protection (Boost OVP)
LP8861-Q1 VIN_OVP_SNVSA50.gifFigure 17. VIN Overvoltage Protection (VIN OVP)
LP8861-Q1 VIN_UVLO_SNVSA50.gifFigure 18. VIN Undervoltage Lockout
LP8861-Q1 VIN_OCP_SNVSA50.gifFigure 19. Input Voltage Overcurrent Protection

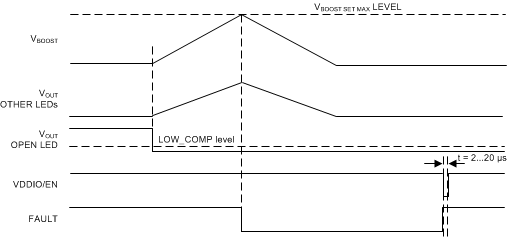

LP8861-Q1 LED_open_fault_SNVSA50.gifFigure 20. LED Open Fault

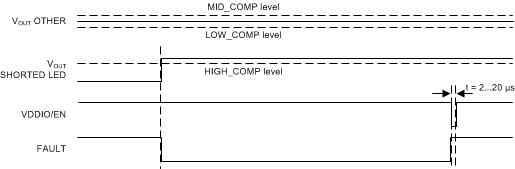

LP8861-Q1 LED_short_fault_SNVSA50.gifFigure 21. LED Short Fault
