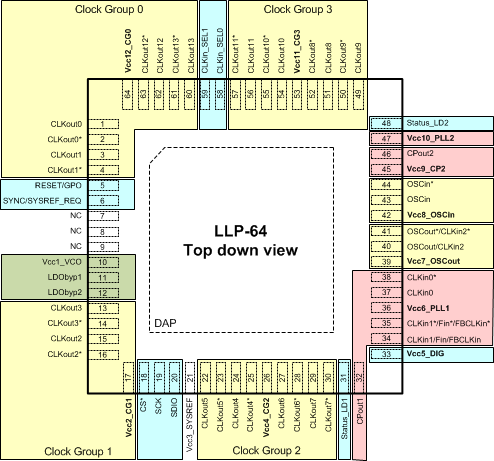

5 Pin Configuration and Functions

NKD Package
64-Pin WQFN
Top View
LMK04832 po_SNAS688.gif

Pin Functions

PIN I/O TYPE DESCRIPTION(1)
NO. NAME
1 CLKout0 O Programmable Clock output 0. For JESD204B systems suggest Device Clock.
Programmable formats: CML, LVPECL, LCPECL, or LVDS.
2 CLKout0*
3 CLKout1 O Programmable Clock output 1. For JESD204B systems suggest SYSREF Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
4 CLKout1*
5 RESET/GPO I CMOS Device reset input or GPO
6 SYNC/SYSREF_REQ I CMOS Synchronization input or SYSREF_REQ for requesting continuous SYSREF.
7 NC — — Do not connect.
8
9
10 Vcc1_VCO PWR Power supply for VCO and clock distribution.
11 LDObyp1 ANLG LDO Bypass, bypassed to ground with 10-µF capacitor.
12 LDObyp2 ANLG LDO Bypass, bypassed to ground with a 0.1-µF capacitor.
13 CLKout3 O Programmable Clock output 3. For JESD204B systems suggest SYSREF Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
14 CLKout3*
15 CLKout2 O Programmable Clock output 2. For JESD204B systems suggest Device Clock.
Programmable formats: CML, LVPECL, LCPECL, or LVDS.
16 CLKout2*
17 Vcc2_CG1 PWR Power supply for clock outputs 2 and 3.
18 CS* I CMOS Chip Select
19 SCK I CMOS SPI Clock
20 SDIO I/O CMOS SPI Data
21 Vcc3_SYSREF PWR Power supply for SYSREF divider and SYNC.
22 CLKout5 O Programmable Clock output 5. For JESD204B systems suggest SYSREF Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
23 CLKout5*
24 CLKout4 O Programmable Clock output 4. For JESD204B systems suggest Device Clock.
Programmable formats: CML, LVPECL, LCPECL, or LVDS.
25 CLKout4*
26 Vcc4_CG2 PWR Power supply for clock outputs 4, 5, 6 and 7.
27 CLKout6 O Programmable Clock output 6. For JESD204B systems suggest Device Clock.
Programmable formats: CML, LVPECL, LCPECL, or LVDS.
28 CLKout6*
29 CLKout7 O Programmable Clock output 7. For JESD204B systems suggest SYSREF Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
30 CLKout7*
31 Status_LD1 I/O Programmable Programmable status pin.
32 CPout1 O ANLG Charge pump 1 output.
33 Vcc5_DIG PWR Power supply for the digital circuitry.
34 CLKin1 I ANLG Reference Clock Input Port 1 for PLL1.
FBCLKin Feedback input for external clock feedback input (0–delay mode).
Fin1 External VCO Input or clock distribution input.
35 CLKin1* I ANLG Reference Clock Input Port 1 for PLL1.
FBCLKin* Feedback input for external clock feedback input (0–delay mode).
Fin1* External VCO Input or clock distribution input.
36 Vcc6_PLL1 PWR Power supply for PLL1, charge pump 1, holdover DAC
37 CLKin0 I ANLG Reference Clock Input Port 0 for PLL1.
38 CLKin0*
39 Vcc7_OSCout PWR Power supply for OSCout port.
40 OSCout I/O Programmable Buffered output of OSCin port.
CLKin2 Reference Clock Input Port 2 for PLL1.
41 OSCout* I/O Programmable Buffered output of OSCin port.
CLKin2* Reference Clock Input Port 2 for PLL1.
42 Vcc8_OSCin PWR Power supply for OSCin
43 OSCin I ANLG Feedback to PLL1 and reference input to PLL2. AC-coupled.
44 OSCin*
45 Vcc9_CP2 PWR Power supply for PLL2 Charge Pump.
46 CPout2 O ANLG Charge pump 2 output.
47 Vcc10_PLL2 PWR Power supply for PLL2.
48 Status_LD2 I/O Programmable Programmable status pin.
49 CLKout9 O Programmable Clock output 9. For JESD204B systems suggest SYSREF Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
50 CLKout9*
51 CLKout8 O Programmable Clock output 8. For JESD204B systems suggest Device Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
52 CLKout8*
53 Vcc11_CG3 PWR Power supply for clock outputs 8, 9, 10, and 11.
54 CLKout10 O Programmable Clock output 10. For JESD204B systems suggest Device Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
55 CLKout10*
56 CLKout11 O Programmable Clock output 11. For JESD204B systems suggest SYSREF Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
57 CLKout11*
58 CLKin_SEL0 I/O Programmable Programmable status pin.
59 CLKin_SEL1 I/O Programmable Programmable status pin.
60 CLKout13 O Programmable Clock output 13. For JESD204B systems suggest SYSREF Clock.
Programmable formats: CML, LVPECL, LCPECL, LVDS, or 2xLVCMOS.
61 CLKout13*
62 CLKout12 O Programmable Clock output 12. For JESD204B systems suggest Device Clock.
Programmable formats: CML, LVPECL, LCPECL, or LVDS.
63 CLKout12*
64 Vcc12_CG0 PWR Power supply for clock outputs 0, 1, 12, and 13.
DAP DAP GND DIE ATTACH PAD, connect to GND.
(1) See Pin Connection Recommendations for recommended connections.
