Start-up Waveforms

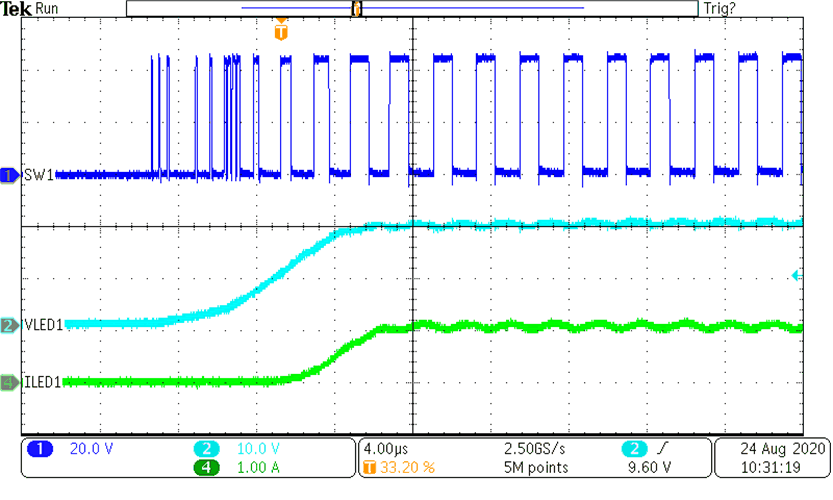

Figure 3-3 shows the start-up waveforms for channel 1 (VLED1 and ILED1 ) of the TPS92520EVM-133 dual-channel buck LED driver settings set to 1 A ILED1 with 6 LEDs .

VIN = 48 V, VLED1 = 20 V, ILED1 = 1.0 A
Figure 3-3 Soft-Start Waveforms
