7.2.3 Application Curves

The figures below show the typical switching characteristics of the UCC27624V device used in high-voltage boost converter application. In this application, the UCC27624V is driving the IGBT switch that has a gate charge of 110nC.

UCC27624V UCC27624V Used to Drive IGBT in the Boost ConverterFigure 7-3 UCC27624V Used to Drive IGBT in the Boost Converter

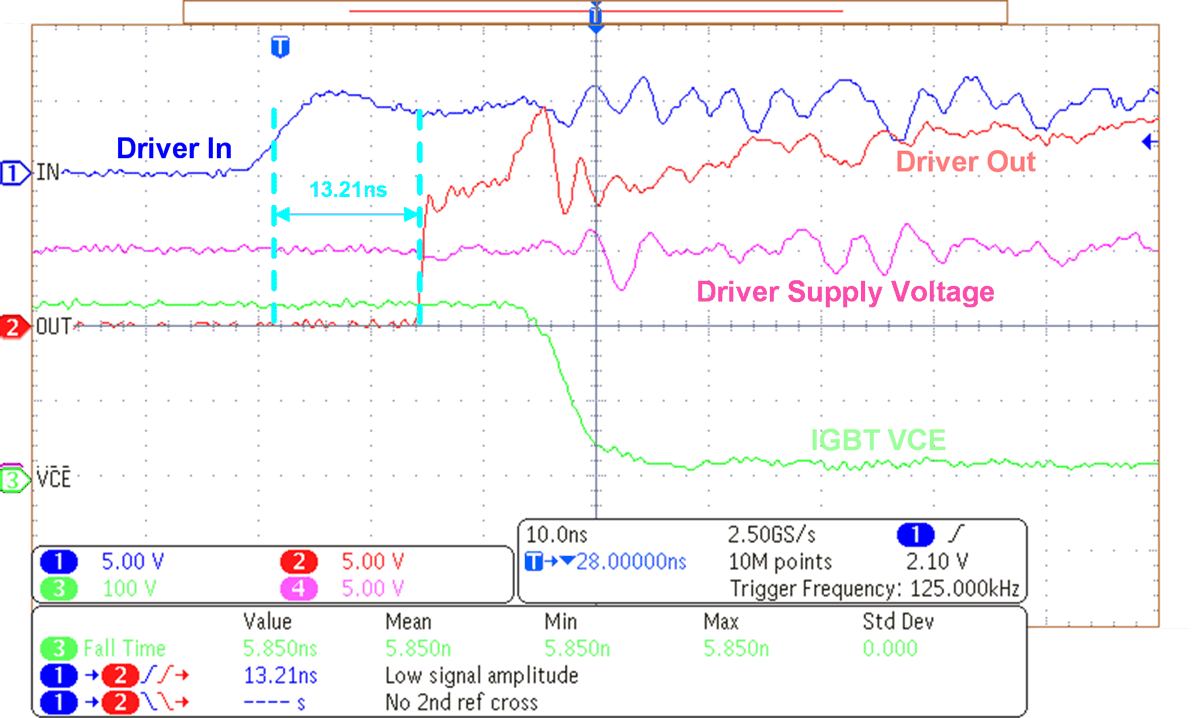

UCC27624V Turn-On Propagation Delay Waveform
Vin = 210V, Vout = 235V, Iout = 1.14A, Fsw = 125kHz, driver supply voltage = 15V, gate resistor = 0Ω
Figure 7-4 Turn-On Propagation Delay Waveform

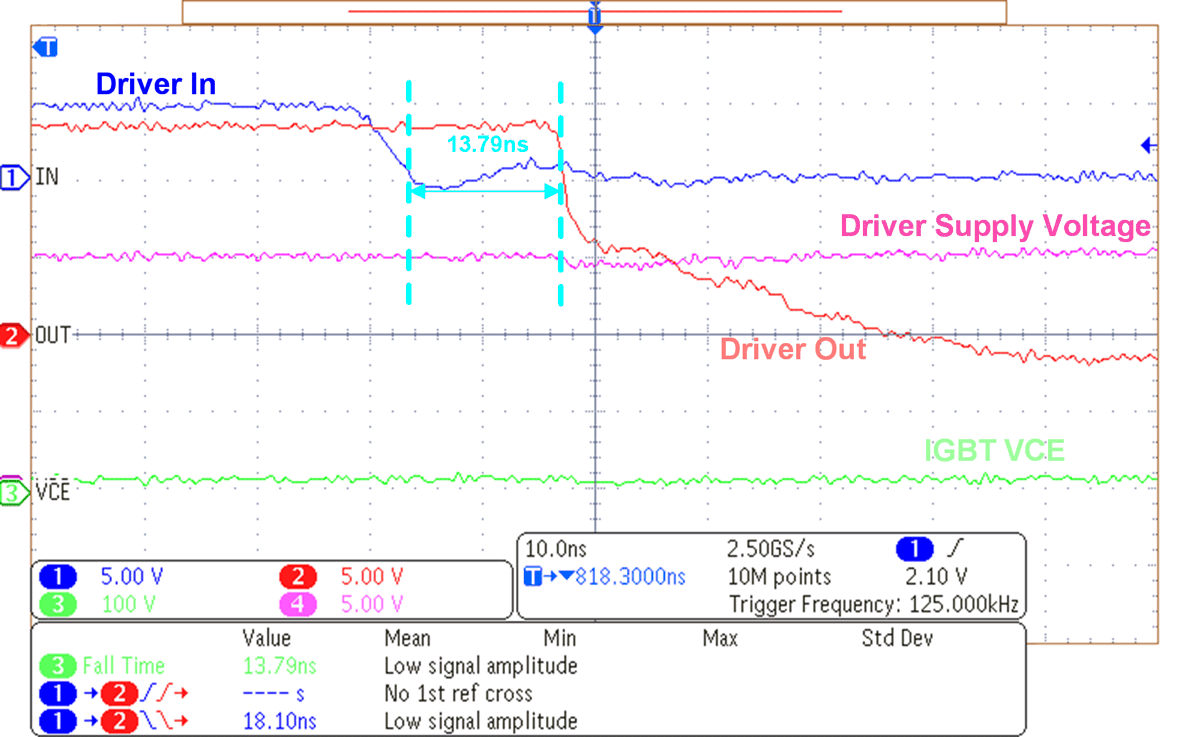

UCC27624V Turn-Off Propagation Delay Waveform
Vin = 210V, Vout = 235V, Iout = 1.14A, Fsw = 100kHz, driver supply voltage = 15V, gate resistor = 0Ω
Figure 7-5 Turn-Off Propagation Delay Waveform
