5.8 Typical Characteristics

Unless otherwise specified, VDD=12V, INx=3.3V, ENx=3.3V, TJ = 25°C, no load

UCC27624V Start-Up and Quiescent Current
Figure 5-3 Start-Up and Quiescent Current
UCC27624V Static Supply Current (outputs in DC on or off condition)
Figure 5-5 Static Supply Current (outputs in DC on or off condition)
UCC27624V VDD UVLO Threshold
Figure 5-7 VDD UVLO Threshold
UCC27624V Input Pulldown Resistance
Figure 5-9 Input Pulldown Resistance
UCC27624V Enable Pullup Resistance
Figure 5-11 Enable Pullup Resistance
UCC27624V Output Pulldown Resistance
Figure 5-13 Output Pulldown Resistance
UCC27624V Output Fall Time vs VDD
CLOAD = 1.8 nF
Figure 5-15 Output Fall Time vs VDD
UCC27624V Input to Output Rising (turn-on) Propagation Delay vs VDD
CLOAD = 1.8 nF
Figure 5-17 Input to Output Rising (turn-on) Propagation Delay vs VDD
UCC27624V Input Propagation Delay vs Temperature
CLOAD = 1.8 nF
Figure 5-19 Input Propagation Delay vs Temperature
UCC27624V Enable to Output Falling Propagation Delay
CLOAD = 1.8nF
Figure 5-21 Enable to Output Falling Propagation Delay
UCC27624V Turn-Off and Falling Delay Matching
Figure 5-23 Turn-Off and Falling Delay Matching
UCC27624V Peak Sink Current vs VDD
Figure 5-25 Peak Sink Current vs VDD
UCC27624V Operating Supply Current (both outputs switching)
Figure 5-4 Operating Supply Current (both outputs switching)
UCC27624V Disable Current (EN = 0V)
Figure 5-6 Disable Current (EN = 0V)
UCC27624V Input Thresholds
Figure 5-8 Input Thresholds
UCC27624V Enable Threshold
Figure 5-10 Enable Threshold
UCC27624V Output Pullup Resistance
Figure 5-12 Output Pullup Resistance
UCC27624V Output Rise Time vs VDD
CLOAD = 1.8 nF
Figure 5-14 Output Rise Time vs VDD

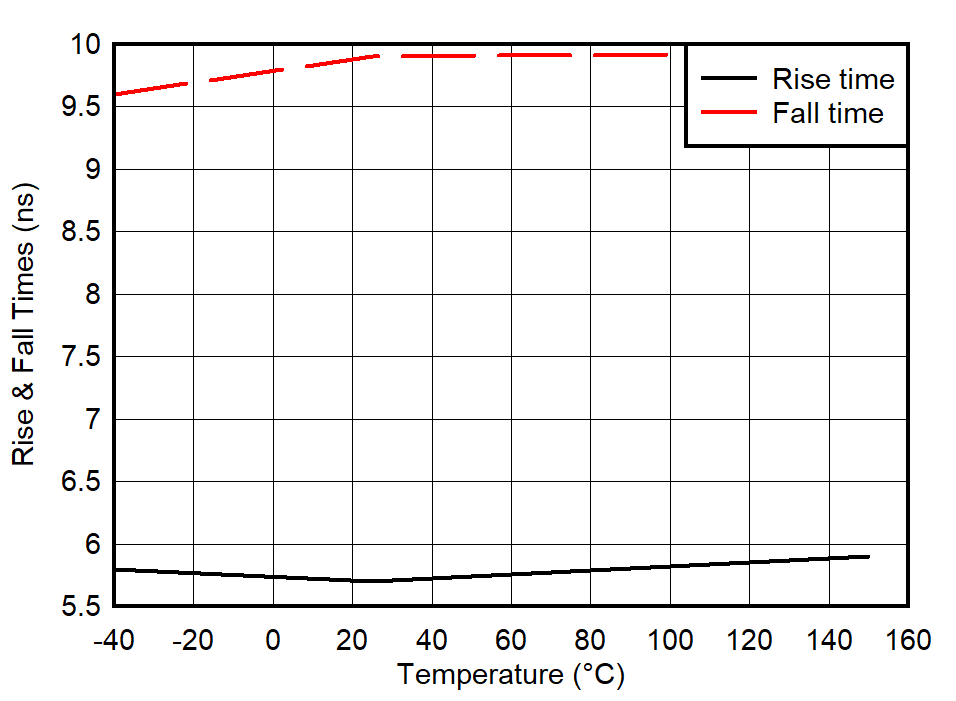

UCC27624V Output Rise and Fall Time vs Temperature
CLOAD = 1.8 nF
Figure 5-16 Output Rise and Fall Time vs Temperature
UCC27624V Input to Output Falling (turn-off) Propagation Delay vs VDD
CLOAD = 1.8 nF
Figure 5-18 Input to Output Falling (turn-off) Propagation Delay vs VDD
UCC27624V Enable to Output Rising Propagation Delay
CLOAD = 1.8 nF
Figure 5-20 Enable to Output Rising Propagation Delay
UCC27624V Turn-On/Rising Delay Matching
Figure 5-22 Turn-On/Rising Delay Matching
UCC27624V Peak Source Current vs VDD
Figure 5-24 Peak Source Current vs VDD
