8.5.2.4 Unique Address Interface

The Unique Address Interface allows for complex interaction between an I2C master and a single TPS65982DMC. The I2C Slave sub-address is used to receive or respond to Host Interface protocol commands. Figure 8-24 and Figure 8-25 show the write and read protocol for the I2C slave interface, and a key is included in Figure 8-26 to explain the terminology used. The key to the protocol diagrams is in the SMBus Specification and is repeated here in part.

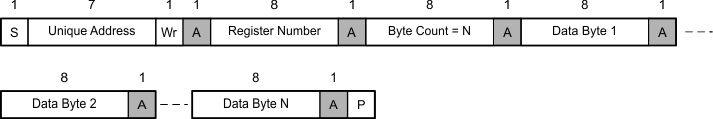

GUID-87ACED1F-F7AD-44A9-8D85-B0D0825A6FA3-low.gifFigure 8-24 I2C Unique Address Write Register Protocol

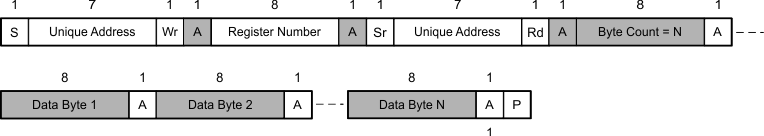

GUID-1FE57306-3249-4881-AF15-B97D575ADBF3-low.gifFigure 8-25 I2C Unique Address Read Register Protocol

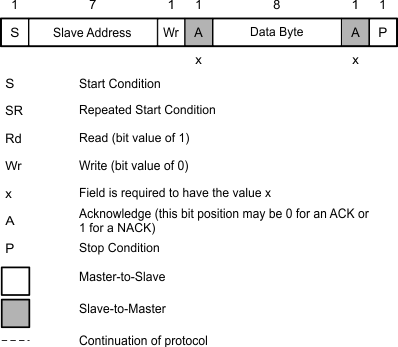

GUID-D861BA25-89F5-4055-A129-21E64C8C50B8-low.gifFigure 8-26 I2C Read/Write Protocol Key
