7.7 Typical Characteristics

GUID-FE343DA1-5DDF-4A6D-BCAA-AF4B916CDB3C-low.gifFigure 7-1 On-Resistance vs Temperature Across Load Current
GUID-52C78DE2-23E0-4BBB-ADA4-1A50A2BB44D8-low.gifFigure 7-3 OVP Threshold Voltage vs Temperature
GUID-6A7C41C4-3593-4285-8582-07803991A6BC-low.gifFigure 7-5 V(FWDTH) vs Temperature
GUID-708938FD-8470-47C8-B308-77E322FB18D0-low.gifFigure 7-7 Internal POR Threshold Voltage vs Temperature
GUID-4C9CF1BB-F497-42B3-B91D-A8D2244539B2-low.gifFigure 7-9 Input Supply Current vs Supply Voltage During Normal Operation
GUID-F8590097-CE51-4CDA-98A6-8340E1E8E3D5-low.gifFigure 7-11 OVP Disable Delay vs Temperature

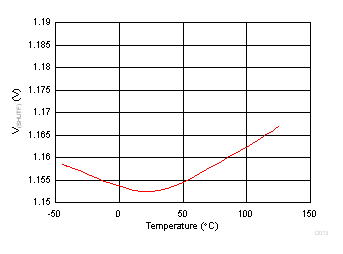

GUID-53F0BD99-A350-4AE2-92D4-9EE67AB40213-low.gifFigure 7-13 Shutdown Threshold Voltage Shutdown vs Temperature
GUID-8052C860-8A2A-4EF0-8602-328628F3AE48-low.gifFigure 7-15 Current Limit (% Normalized) vs Temperature
GUID-555499EB-645D-49A9-9A91-790B69304121-low.gifFigure 7-17 Over Load Current Limit vs Temperature
GUID-ECBE0B76-0C9D-4747-A8FD-9918C86BFDD3-low.gifFigure 7-19 Fast-Trip Comparator Threshold I(FAST-TRIP) vs Temperature Threshold
GUID-3B96EDB9-8EB7-4F86-86F8-E2751F3AF43C-low.gifFigure 7-21 UVLO Turnoff Delay vs Temperature
Taken on 2-Layer board, 2 oz.(0.08-mm thick) with RTN plane area: 0.8 cm2 (Top) and 4.5 cm2 (Bottom)
Figure 7-23 Thermal Shutdown Time vs Power Dissipation
RILIM = 7.5 kΩRFLTb = 100 kΩRLOAD = 80 Ω

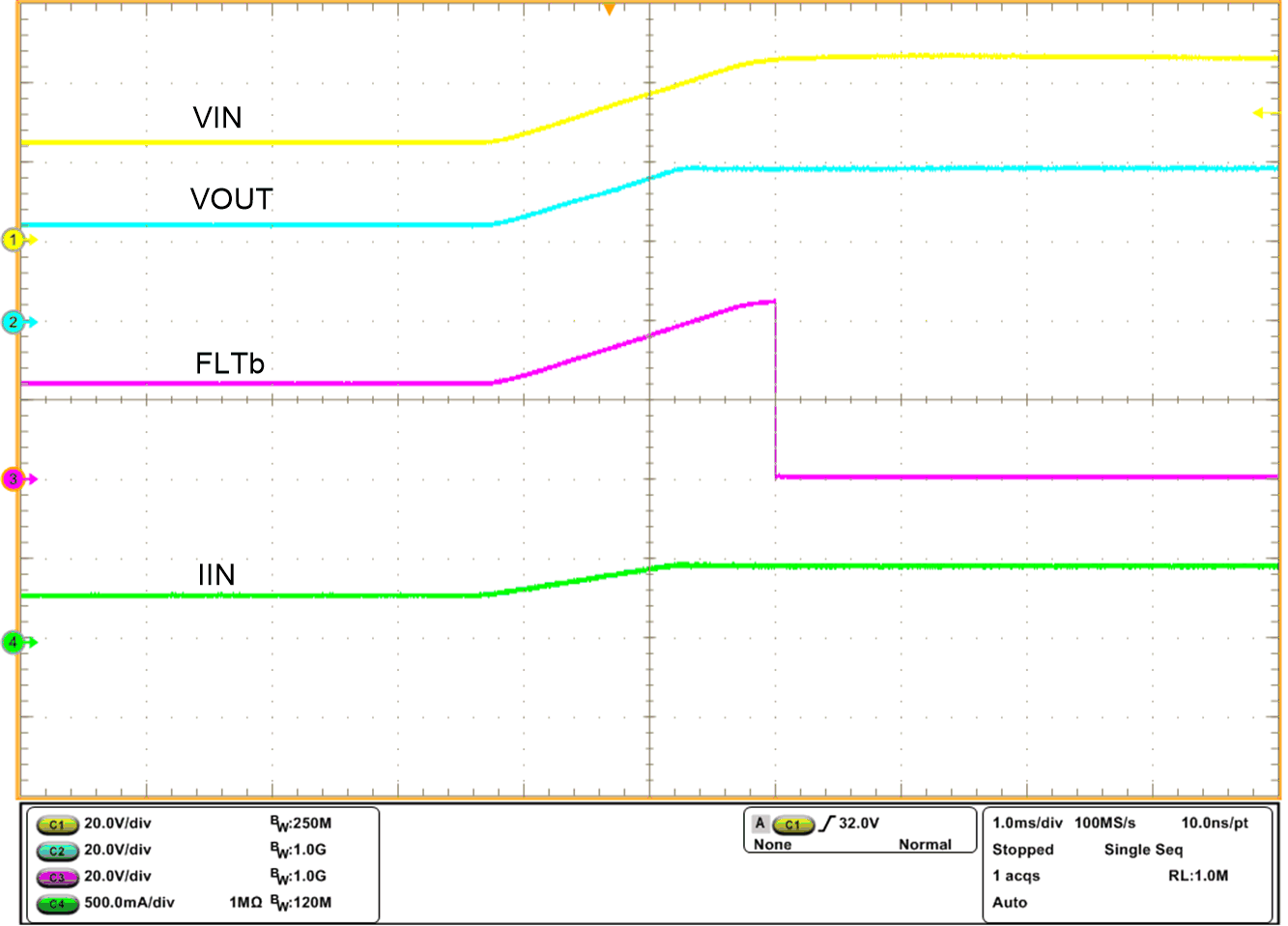

Figure 7-25 OV Clamp Response (TPS26602 Only)
RILIM = 7.5 kΩ
Figure 7-27 Hot-Short: Fast-Trip Response (Zoomed)
RILIM = 7.5 kΩRFLTb = 100 kΩRLOAD = 80 Ω

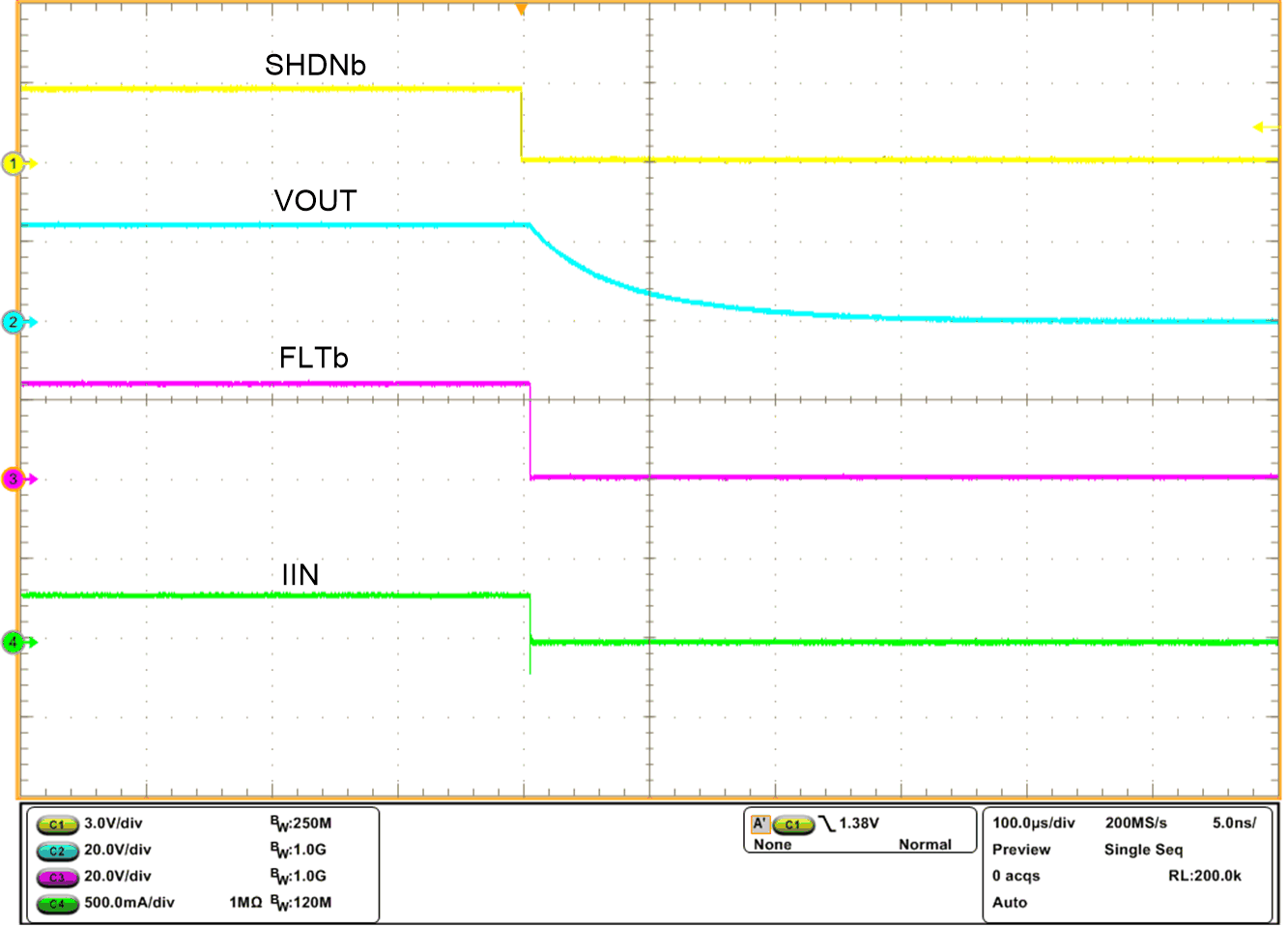

Figure 7-29 Turnoff Control With SHDN
GUID-4FBE8DD0-65AC-47C4-9521-52262DC44F76-low.gifFigure 7-2 UVLO Threshold Voltage vs Temperature

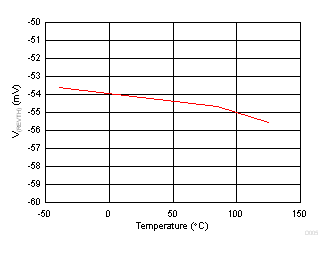

GUID-DE3E6570-46C5-4F93-8267-6A496BC5A5C7-low.gifFigure 7-4 Reverse Voltage Threshold vs Temperature
GUID-3C8BB760-0F48-4440-B48E-E2AF9A7D01E7-low.gifFigure 7-6 Overvoltage Clamp Threshold vs Temperature
GUID-20E00C7C-E625-4E33-B034-9081EDB66CF3-low.gifFigure 7-8 Input Supply Current vs Supply Voltage in Shutdown
V(OUT) = 0 V
Figure 7-10 Input Supply Current vs Reverse Supply Voltage, –V(IN)
GUID-2E083BDE-5130-4EF4-950A-0BB845354DC0-low.gifFigure 7-12 Shutdown Entry Delay vs Temperature

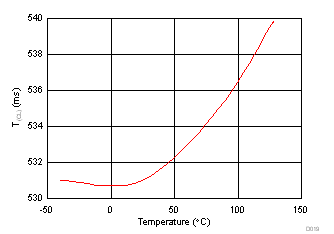

GUID-4D9A49A4-9F39-485E-8310-839551EB3087-low.gifFigure 7-14 Max Duration in Current Limiting t(CL) vs Temperature
GUID-AFF4624D-9619-433E-8C35-26EE9CC5619D-low.gifFigure 7-16 Current Limit (% Normalized) vs Temperature
GUID-A473C3A1-424B-466B-8C22-5C2F242728C1-low.gifFigure 7-18 Current Limit for R(ILIM) = Open and Short vs Temperature
GUID-6AFA1B46-29E9-4649-B2EA-26768855D00F-low.gifFigure 7-20 Current Limit Accuracy vs Current Limit, I(OL)
GUID-E6F01402-3A0F-470E-AA9A-5099DF53194A-low.gifFigure 7-22 Reverse Current Blocking Response Time vs Reverse Comparator Overdrive Voltage
RILIM = 7.5 kΩRFLTb = 100 kΩRLOAD = 80 Ω
OVP setting at 33 V
Figure 7-24 OVP Overvoltage Cut-Off Response
RILIM = 7.5 kΩRFLTb = 100 kΩ

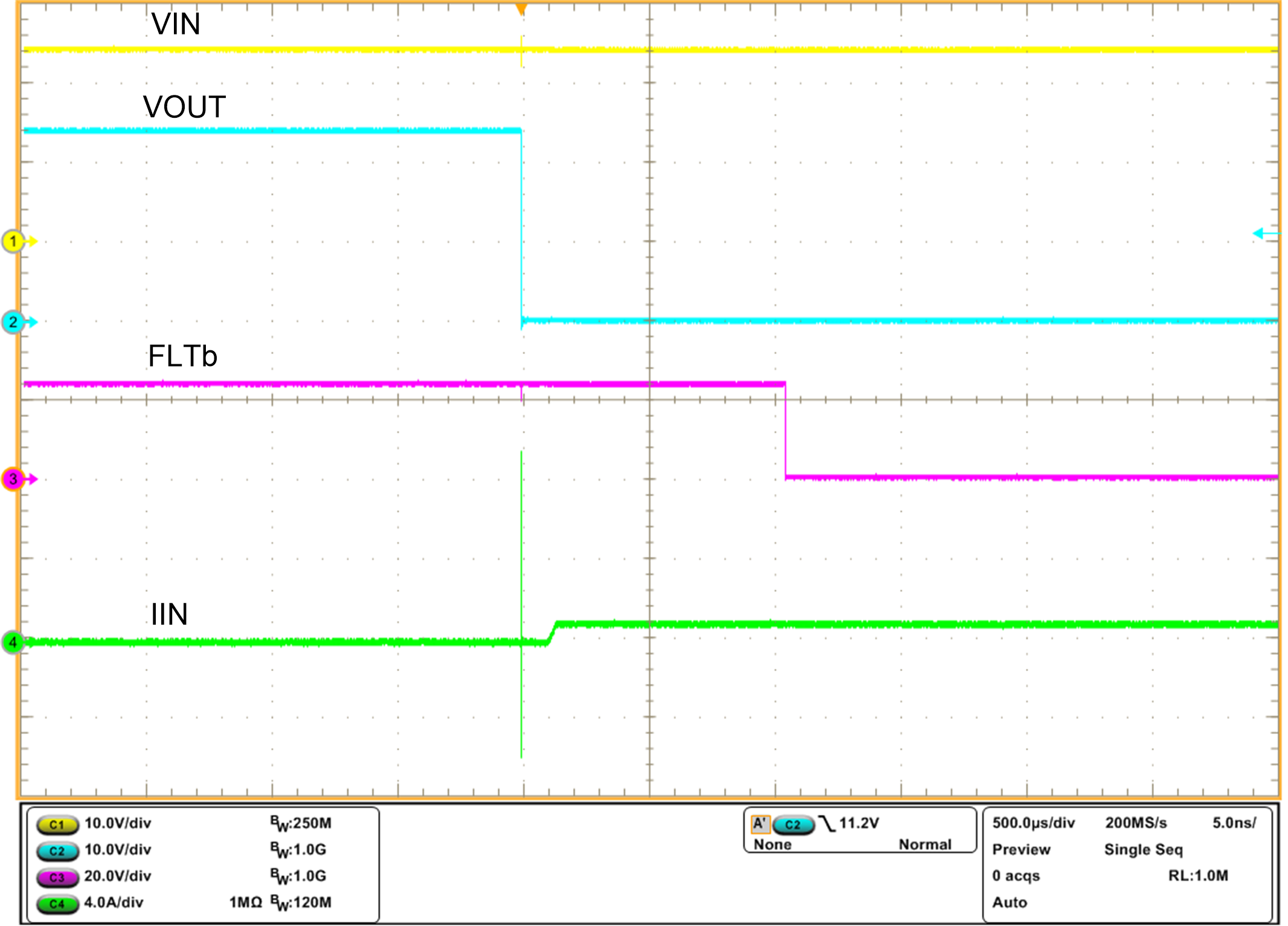

Figure 7-26 Hot-Short: Fast-Trip Response and Current Regulation
RILIM = 7.5 kΩRFLTb = 100 kΩRLOAD = 80 Ω

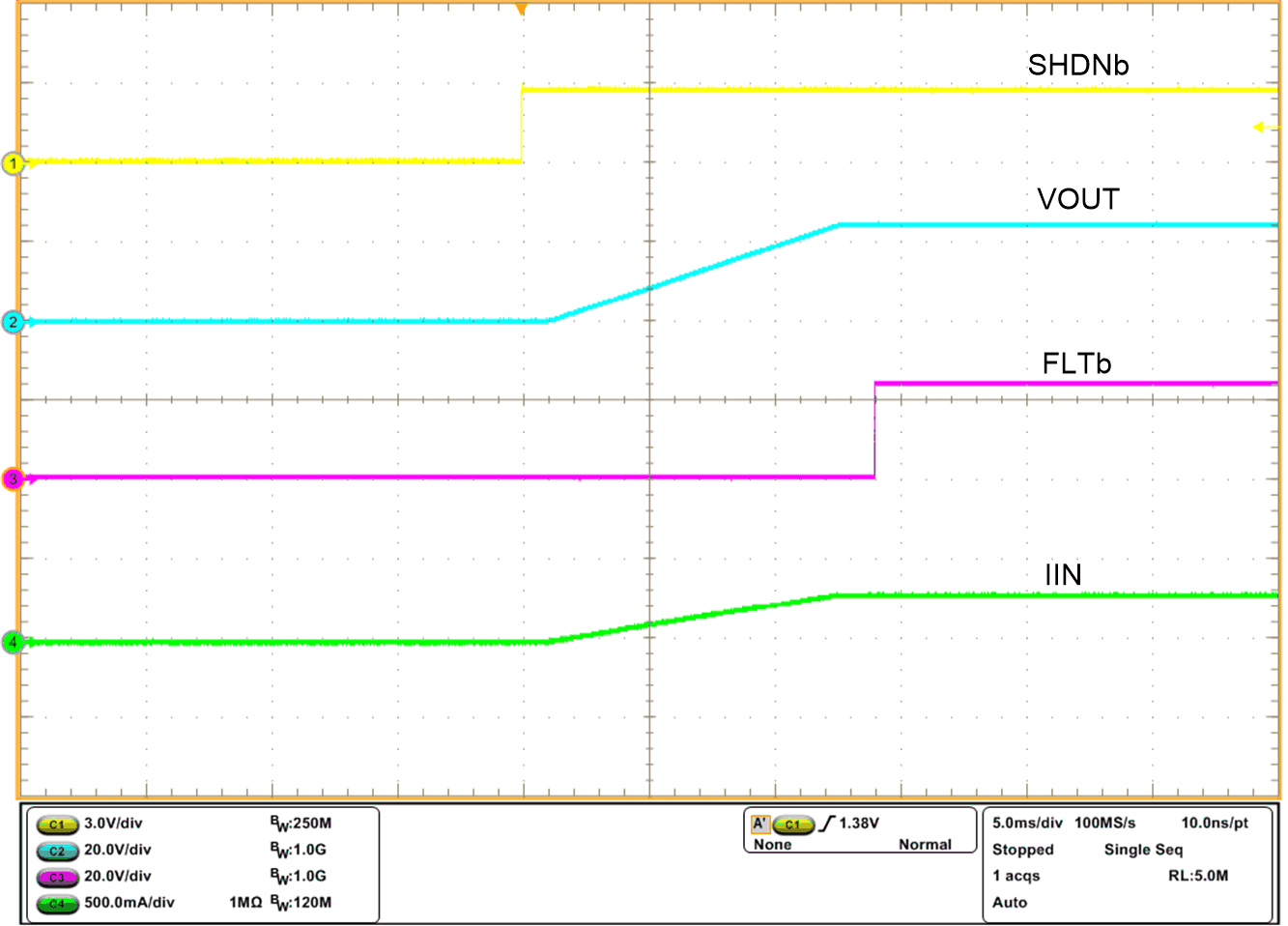

Figure 7-28 Turnon Control With SHDN
