10.2.3 Application Curves

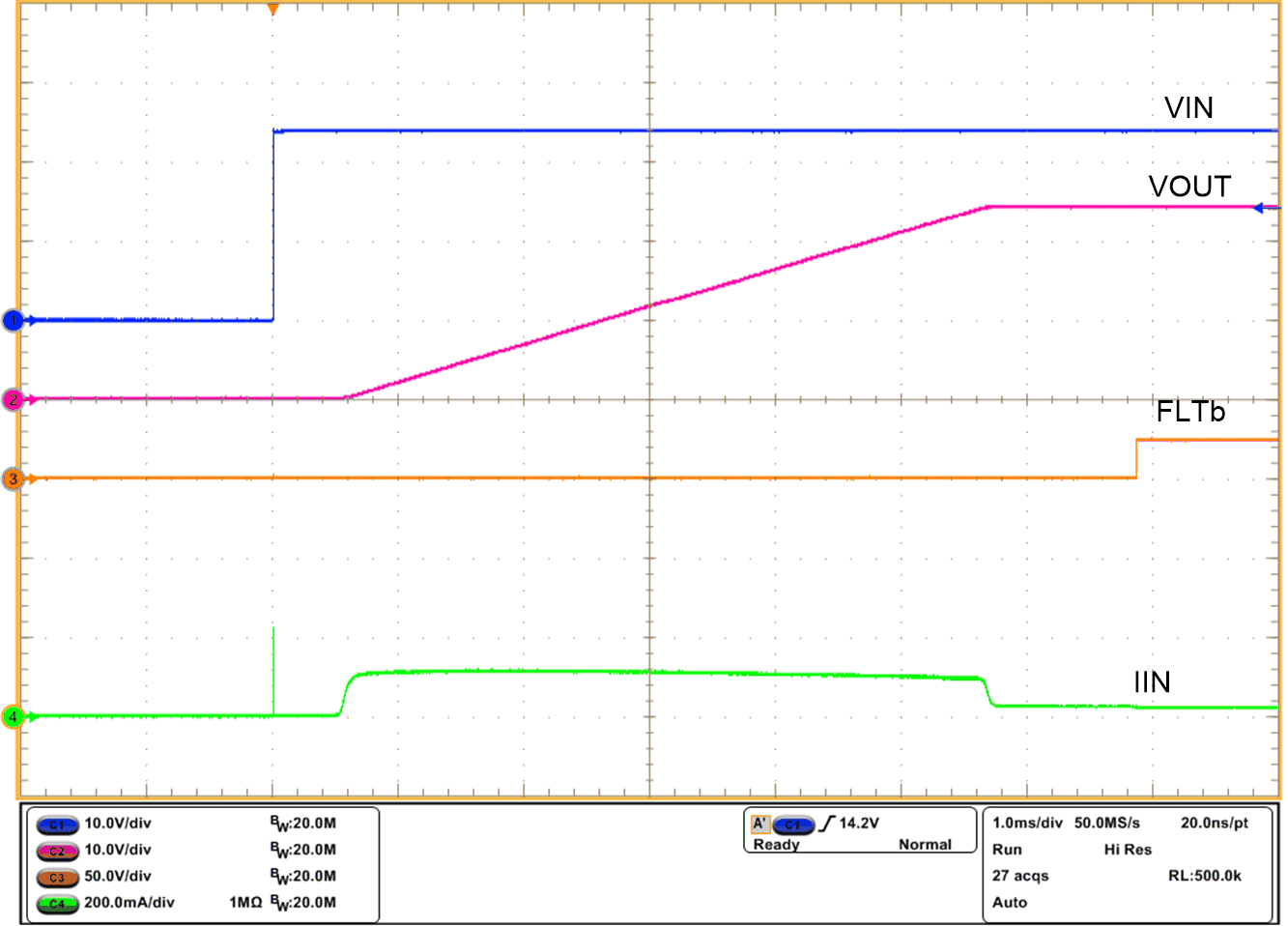

GUID-D01EE30F-D28C-412D-8C5D-5B087F62D922-low.gifFigure 10-7 Hot Plug With VIN – No Load

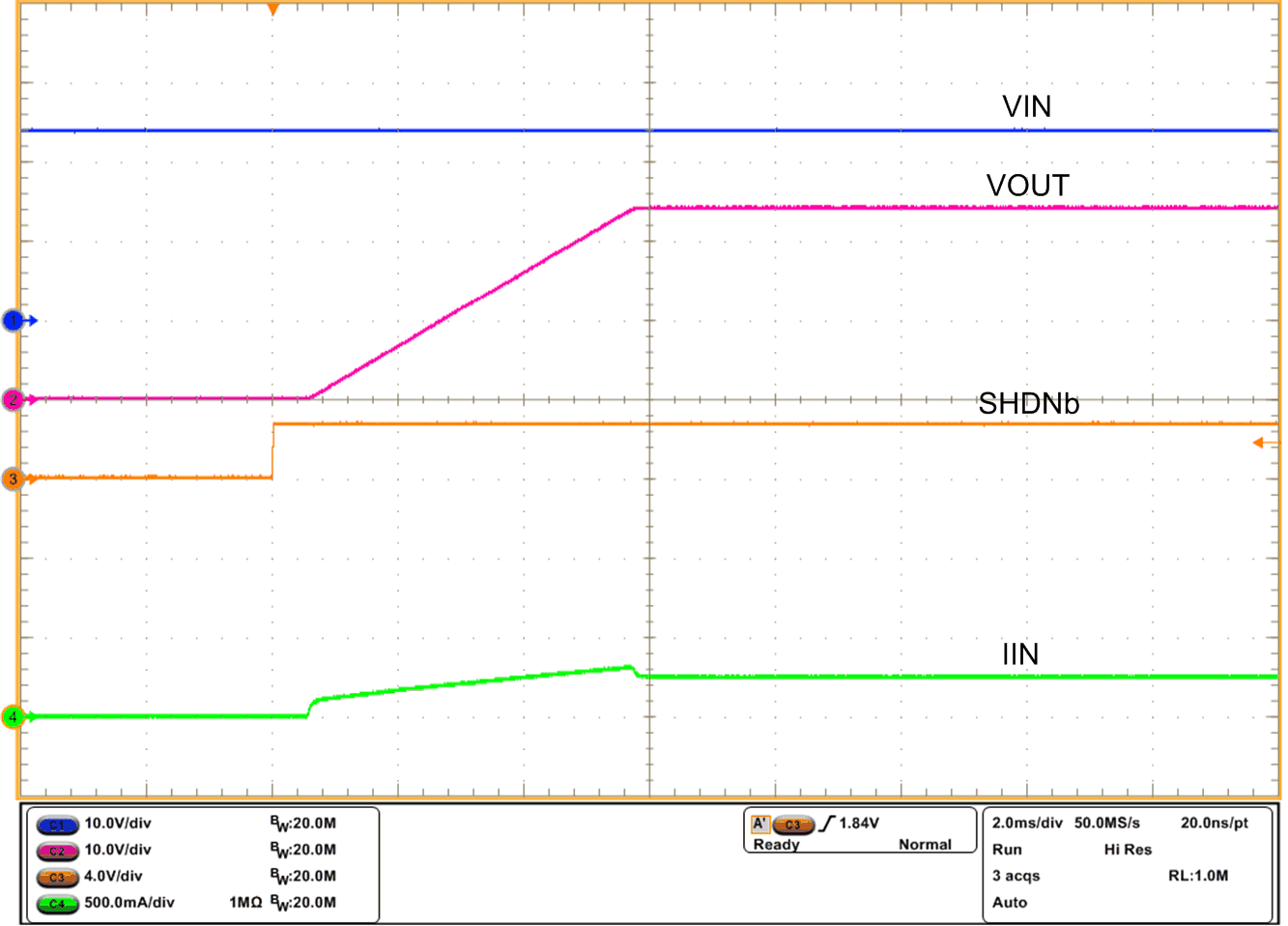

GUID-5797030E-26FC-4CAE-AF2D-27A6FC69FA4E-low.gifFigure 10-9 Start-Up With Shutdown Pin – 96-Ω Load
GUID-57B6AE24-2C35-40F0-B8C8-55297F7F3CB7-low.gifFigure 10-11 Over Load Response – Load Stepped From 136-Ω to 36-Ω Load

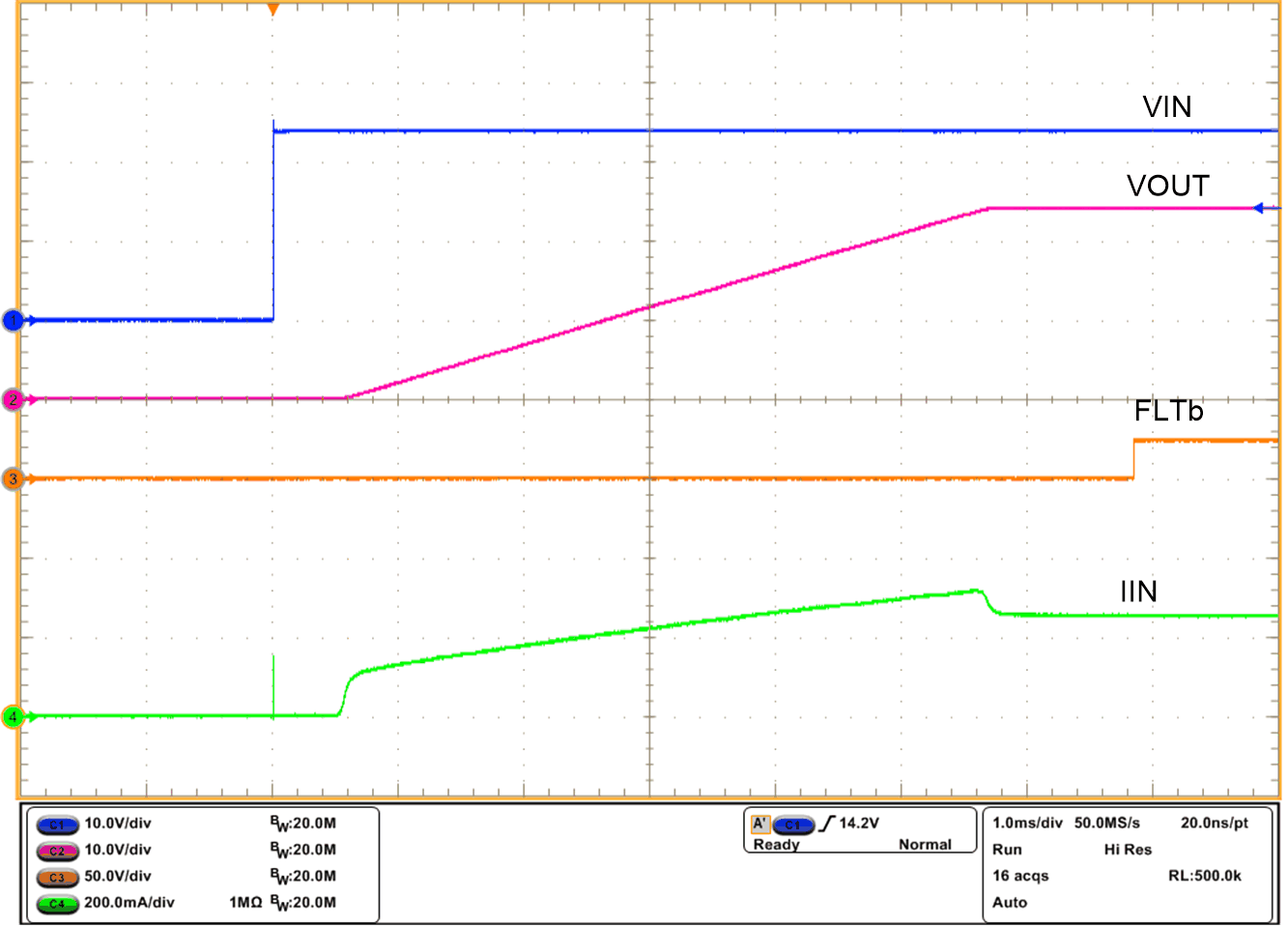

GUID-217B6D3B-ABCA-4F95-9933-3EABC7DCFF3F-low.gifFigure 10-8 Hot-Plug With VIN – 96-Ω Load
GUID-037BCA4B-4D6C-45D3-B570-F55E93C5C902-low.pngFigure 10-10 Power Down With Shutdown Pin – 96-Ω Load

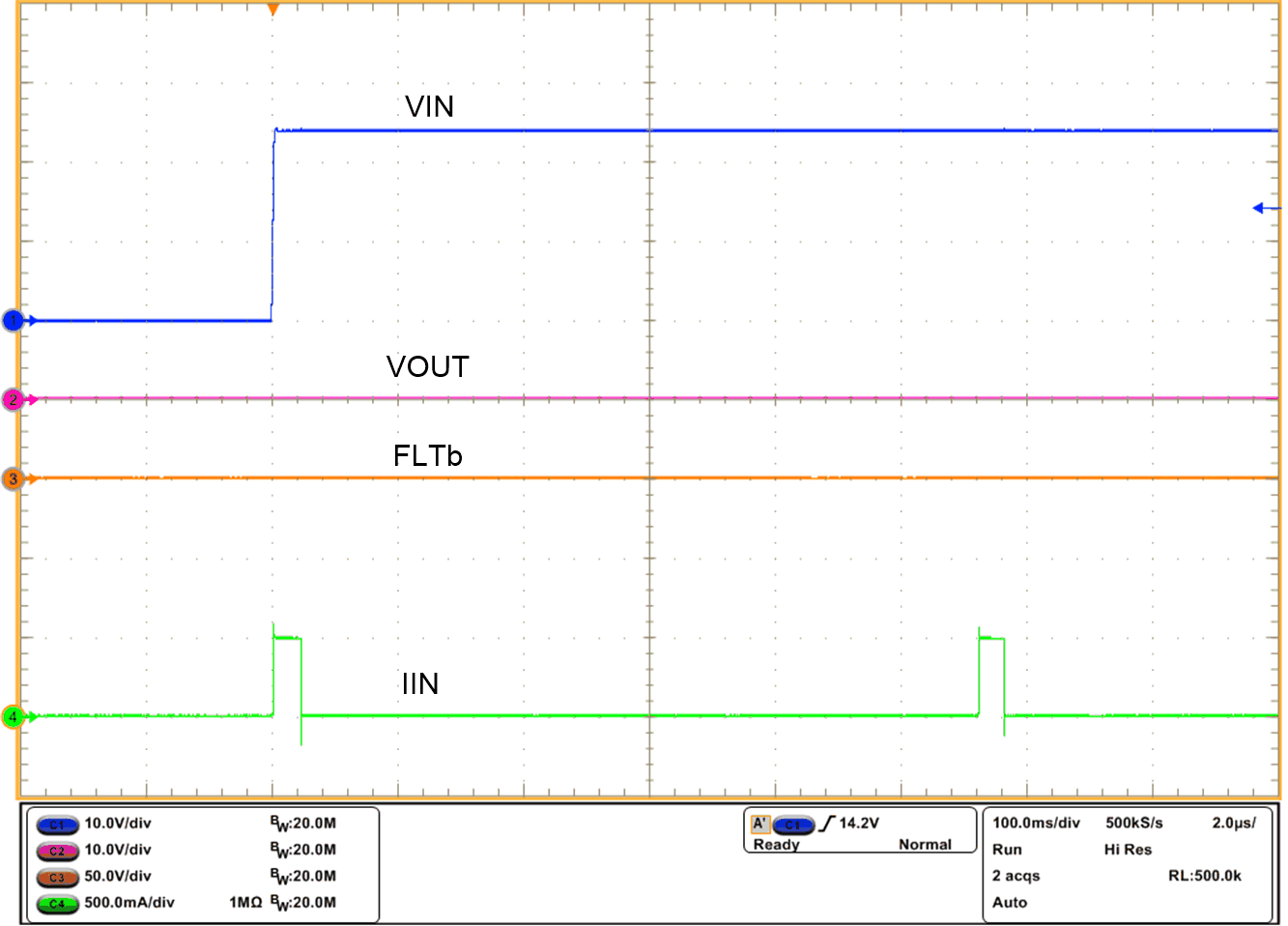

GUID-8B7F580F-91CA-439D-8A1A-04C8CC684966-low.gifFigure 10-12 Turn ON With Short Circuit on Output
