5.11.14 Port PJ (PJ.0 to PJ.3) JTAG Pins TDO, TMS, TCK, TDI/TCLK, Input/Output With Schmitt Trigger

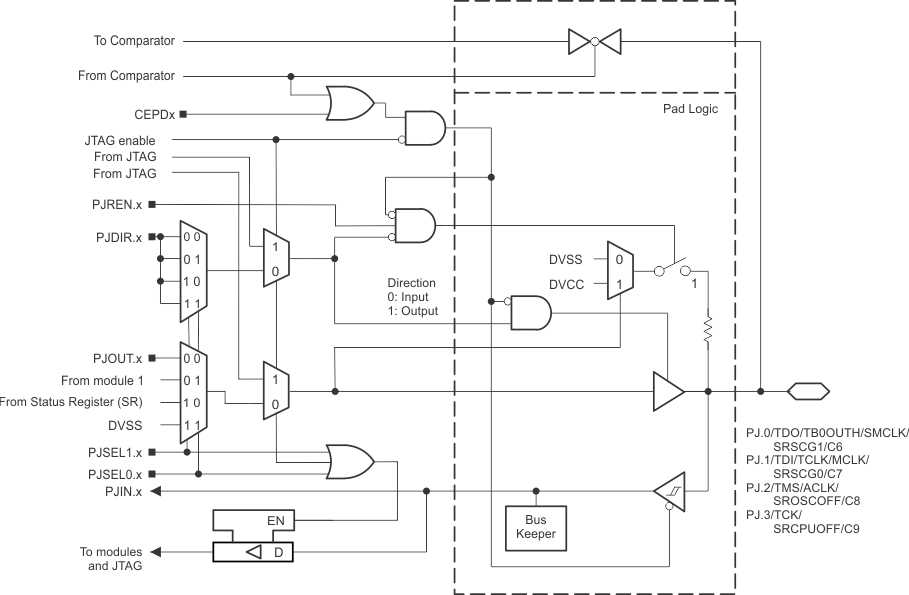

Figure 5-17 shows the port diagram. Table 5-60 summarizes the selection of the pin function.

MSP430FR5969-SP PJ_0123.gif

NOTE:

Functional representation only.
Figure 5-17 Port PJ (PJ.0 to PJ.3) Diagram

Table 5-60 Port PJ (PJ.0 to PJ.3) Pin Functions

PIN NAME (PJ.x) x FUNCTION CONTROL BITS/ SIGNALS(1)
PJDIR.x PJSEL1.x PJSEL0.x CEPDx (Cx)
PJ.0/TDO/TB0OUTH/ SMCLK/SRSCG1/C6 0 PJ.0 (I/O)(2) I: 0; O: 1 0 0 0
TDO(3) X X X 0
TB0OUTH 0 0 1 0
SMCLK(6) 1
N/A 0 1 0 0
CPU Status Register Bit SCG1 1
N/A 0 1 1 0
Internally tied to DVSS 1
C6(5) X X X 1
PJ.1/TDI/TCLK/MCLK/ SRSCG0/C7 1 PJ.1 (I/O)(2) I: 0; O: 1 0 0 0
TDI/TCLK(3)(4) X X X 0
N/A 0 0 1 0
MCLK 1
N/A 0 1 0 0
CPU Status Register Bit SCG0 1
N/A 0 1 1 0
Internally tied to DVSS 1
C7(5) X X X 1
PJ.2/TMS/ACLK/ SROSCOFF/C8 2 PJ.2 (I/O)(2) I: 0; O: 1 0 0 0
TMS(3)(4) X X X 0
N/A 0 0 1 0
ACLK 1
N/A 0 1 0 0
CPU Status Register Bit OSCOFF 1
N/A 0 1 1 0
Internally tied to DVSS 1
C8(5) X X X 1
PJ.3/TCK/SRCPUOFF/C9 3 PJ.3 (I/O)(2) I: 0; O: 1 0 0 0
TCK(3)(4) X X X 0
N/A 0 0 1 0
Internally tied to DVSS 1
N/A 0 1 0 0
CPU Status Register Bit CPUOFF 1
N/A 0 1 1 0
Internally tied to DVSS 1
C9(5) X X X 1
(1) X = Don't care
(2) Default condition
(3) The pin direction is controlled by the JTAG module. JTAG mode selection is made via the SYS module or by the Spy-Bi-Wire four-wire entry sequence. Neither PJSEL1.x and PJSEL0.x nor CEPDx bits have an effect in these cases.
(4) In JTAG mode, pullups are activated automatically on TMS, TCK, and TDI/TCLK. PJREN.x are don't care.
(5) Setting the CEPDx bit of the comparator disables the output driver and the input Schmitt trigger to prevent parasitic cross currents when applying analog signals. Selecting the Cx input pin to the comparator multiplexer with the input select bits in the comparator module automatically disables output driver and input buffer for that pin, regardless of the state of the associated CEPDx bit.
(6) Do not use this pin as SMCLK output if the TB0OUTH functionality is used on any other pin. Select an alternative SMCLK output pin.
