4 功能方框图

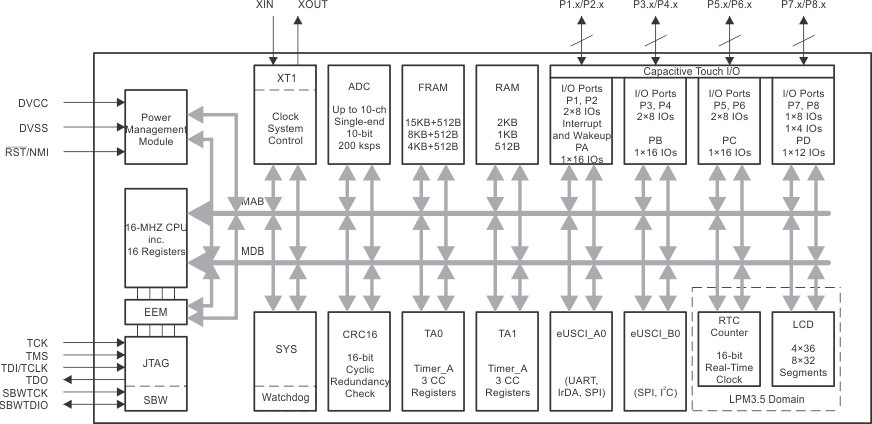

图 4-1 给出了功能方框图。

GUID-7BDF260F-096B-45A5-8E3F-E0186249FE25-low.gif图 4-1 功能方框图
  • 该器件具有一对主电源（DVCC 和 DVSS），分别为数字和模拟模块供电。推荐的旁路和去耦电容分别为 4.7μF 至 10μF 和 0.1μF，精度为 ±5%。
  • P1 和 P2 特有引脚中断功能，可将 MCU 从 LPM3.5 模式唤醒。
  • 每个 Timer_A3 均有 3 个 CC 寄存器，不过只有 CCR1 和 CCR2 从外部连接。CCR0 寄存器仅用于内部周期时序和产生中断。
  • 在 LPM3.5 模式下，RTC 计数器与 LCD 可继续工作，而其余外设会停止工作。
  • 所有 I/O 均可配置为电容式触摸 I/O。
