Table 5-26 JTAG, Spy-Bi-Wire Interface

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-17)
PARAMETER VCC MIN TYP MAX UNIT
fSBW Spy-Bi-Wire input frequency 2 V, 3 V 0 10 MHz
tSBW,Low Spy-Bi-Wire low clock pulse duration 2 V, 3 V 0.028 15 µs
tSU, SBWTDIO SBWTDIO setup time (before falling edge of SBWTCK in TMS and TDI slot, Spy-Bi-Wire) 2 V, 3 V 4 ns
tHD, SBWTDIO SBWTDIO hold time (after rising edge of SBWTCK in TMS and TDI slot, Spy-Bi-Wire) 2 V, 3 V 19 ns
tValid, SBWTDIO SBWTDIO data valid time (after falling edge of SBWTCK in TDO slot, Spy-Bi-Wire) 2 V, 3 V 31 ns
tSBW, En Spy-Bi-Wire enable time (TEST high to acceptance of first clock edge) (1) 2 V, 3 V 110 µs
tSBW,Ret Spy-Bi-Wire return to normal operation time(2) 2 V, 3 V 15 100 µs
Rinternal Internal pulldown resistance on TEST 2 V, 3 V 20 35 50 kΩ
(1) Tools that access the Spy-Bi-Wire interface must wait for the tSBW,En time after pulling the TEST/SBWTCK pin high before applying the first SBWTCK clock edge.
(2) Maximum tSBW,Ret time after pulling or releasing the TEST/SBWTCK pin low until the Spy-Bi-Wire pins revert from their Spy-Bi-Wire function to their application function. This time applies only if the Spy-Bi-Wire mode is selected.

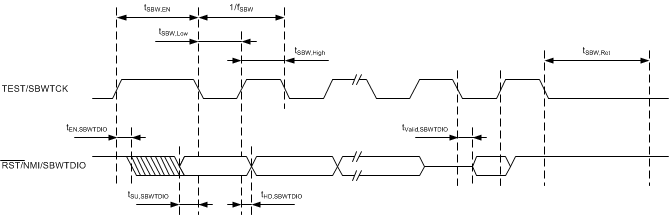

MSP430FR2633 MSP430FR2632 MSP430FR2533 MSP430FR2532 timing_dgm_sbw.gifFigure 5-17 JTAG Spy-Bi-Wire Timing

Table 5-27 lists the characteristics of the 4-wire JTAG interface.
